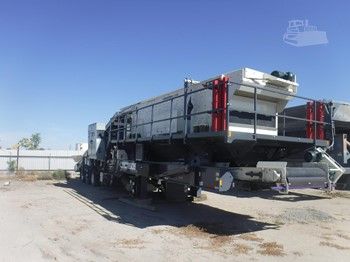

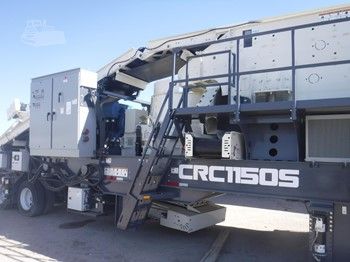

2024 CEDARAPIDS CRC1150S

Description

1 Main Frame including 3-axle suspension, (12) 295/75 R22.5 tires,

hinged king pin leg, walkways and ladders. Includes spring

applied air brakes, brake & turn signals, and splash guards.

2 TEREX TC1150 Automax Cone Crusher: standard Mantle and Medium

Coarse Concave poured, rubber crusher mount isolators,

lubrication tank & air cooler, crusher tool kit, and ACE 6

control panel

3 Electric 300 hp (224 kW) 1800 rpm crusher motor on adjustable

pivoting motor mount.

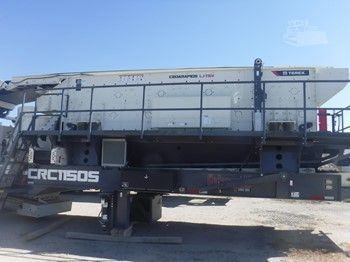

4 TEREX® ElJay TSV6203-32 vibrating screen

5 Compact non-folding flex shaft screen drive with walk-over

platform and 40hp (30Kw) tefc motor

6 Oversized quick release cone feed hopper with overflow chute

7 36" undercrusher conveyor with 10 hp (7.5Kw), tefc electric

motor

8 42" overhead feed conveyor with 20 hp (15Kw), tefc electric

motor

9 54" underscreen conveyor with 10 hp (7.5Kw), tefc electric

motor.

10 All conveyors with vulcanized 3-ply belts, Cema C idlers, rubber

disc return rolls, class II gearbox

11 Transfer chute from under crusher conveyor to feed conveyor with

"keyed" replaceable liners

12 Mid-plant side discharge chutes with "keyed" replaceable liners

can configure to discharge either side

13 Metal detector on plant feed conveyor, interlocked with feed

conveyor when switchgear panel is selected. Includes variable

sensitivity and trip levels along with metal belt clip detector

14 Underscreen collection hopper. Screen discharge chutes for

second and third deck overs.

15 Maintenance Friendly access panels, side mounted tool box and

remote grease lines.

CRC1150S Plant Base Unit

460 volts, 3 phase, 60 hertz

TEREX ANSI DECALS-STANDARD - for shipments to United States/Canada, Australia and New Zealand

Deck Deflectors: Two deflectors divert material toward feed end of bottom deck to boost effective area

(2)Additional 25 hp Starter: IEC style starter with plug & receptacle - EACH

Additional 10 hp Starter: IEC style starter with plug & receptacle - EACH

NEMA Square D Manual Push Button Switchgear Panel: Removable NEMA 4 panel with door mounted manual push button controls, ammeter, & hour meter. Includes reduced voltage solid state (RVSS soft start) for 300hp crusher motor, full voltage Square D type S style motor starters for other motors, and 120V control voltage.

(2)Additional 25 hp Starter: Square D type S starter with plug & receptacle - EACH

"Hydraulic Lift for Panel : Hydraulic cylinders, lift arms, and valves to lower switchgear panel to ground.

Must select hydraulic jack option for use with jack hydraulic power unit."

24" 5 HP cross conveyor: with motorized head pulley drive. Conveyor extends 37" beyond side of frame beam. Can be positioned to discharge off either side of plant. Includes starter if switchgear selected

Four (4) 18" stroke Hydraulic Leveling-Only Jacks w/gas power unit

12 Volt hydraulic unit in place of gas power unit, Must also select one hydraulic jack option
