2024 EAGLE CRUSHER ULTRAMAX 1200-25CC

Description

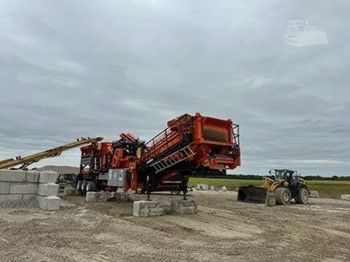

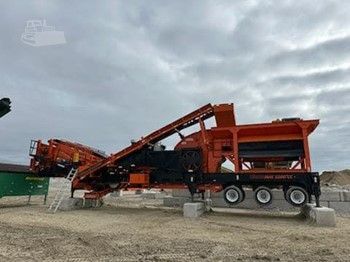

ULTRAMAX 1200-25CC PORTABLE PLANT

Includes -

RECEIVING HOPPER: Heavy Duty,

Steel reinforcement of side plates, 73 x 1710

Top Opening

VIBRATING GRIZZLY FEEDER: 45.1/2" x 18' Includes

bolt in upper and lower grizzly decks of nominal

1-1/2 opening 25 HP, 1200 RPM, TEFEC Electric

motor drive, mounted as integral part with hopper

on common base

TRANSITION HOOD: Consisting of a heavy-duty

fabricated feed chute with chain designed to

accommodate vibratory-type feeding mechanisms and

spray bar for dust suppression

HORIZONTAL SHAFT IMPACTOR: Eagle Ultramax 25

Primary/Secondary, WT 33,300 lbs. 34 x 48 feed

opening, Exclusive fixed bar solid steel

sculptured rotor, cast primary curtain, secondary

curtain with wear resistant replaceable liners,

hydraulic shim adjustment on secondary curtain,

crusher housing split with hydraulic opening for

access to rotor, curtains and replaceable liners.

Blow bar removal tool included.

SPRING BRIDGE: Primary curtain spring bridge

assembly where each spring exerts a compressive

force for additional stabilization of primary

curtain and still allows to swing away under

extreme loads, such as uncrushable, with

hydraulic adjustment

FINES BYPASS CHUTE: Fines Bypass Chute: for

diverting material to the under-crusher gathering

hopper

UNDERCRUSHER GATHERING HOPPER: heavy-duty steel

plate complete with full length rubber flashing

and replaceable liners;

PLANT CONVEYOR: 42" wide for transporting crusher

discharge material to the 2-deck screen, 20°

troughing idlers, high impact urethane/rubber

slider bed in loading area, return rollers, 15

HP, 1800 RPM, TEFC, electric motor drive

VIBRATING SCREEN: Vibrating Screen: Deister 5' x

16' 2-deck, inclined vibrating screen, 15 HP,

1800 RPM, TEFC, electric motor drive, stroke

setting adjustable by weights, 1 ½ Top Deck and

2 Bottom Deck standard square opening screen

cloth installed;

TOP CROSS CONVEYOR: 18" wide for discharge of top

deck material to the return conveyor with 20°

troughing idlers, full length skirtboards with

rubber flashing, 4 HP, motorized head pulley;

BOTTOM CROSS CONVEYOR: 24" wide for discharge of

bottom deck material to the curb side of plant,

20° troughing idlers, full length skirtboards

with rubber flashing, 4 HP, motorized head

pulley;

SCREEN FINES CONVEYOR: 42" wide for discharge of

bottom deck fines to the front of plant, 20°

idlers, under-screen gathering hopper with full

length rubber flashings, and primary belt

cleaner, for transfer of material to radial

stacker, 10 HP electric motor drive;

RETURN FINES CONVEYOR: 24 wide plant mounted for

return of oversize material of top deck back to

the crusher, 20° troughing idlers, full length

skirtboards, 7.5 HP, motorized head pulley, 10 HP

variable frequency drive for speed control, top d

head pulley, 10 HP variable frequency drive for

speed control, top 1/2 is hydraulic retraction

for operation and travel;

PLATFORMS and RAILINGS:

structural steel frame with expanded metal floor, platforms and railings located at the crusher, diesel, and hopper for operation;

MAIN TRAILER FRAME:

24" wide flange beam side rails, air ride tri-axle suspension with 77.5" track axles, twelve 275/70R 22.5 18-ply tires, air-controlled brakes with emergency and service gladhands, fifth wheel plate and kingpin, prewired running lights with stop, directional and 3 light marker bar;

HYDRAULIC LIFT/LEVELING:

set of six stiff-leg hydraulic cylinders controlled by an independent powered hydraulic unit complete with in-line load controls on each cylinder and directional control valves;

DRIVE GUARDS:

Formed sheet metal with wire mesh, complete with hinge type doors for easy access to pulleys and belts;

TIER IV DIESEL POWER:

CAT 9.3L ENGINE 455HP @ 1800 RPM, electronic controlled governor, emergency shutdown for low oil pressure, overspeed and high temperature, one 125-gallon fuel tank.

GENERATOR: Heavy-duty base mounted, 140 kW, 460 volts, 3-phase, 60 hertz.

GENERATOR ENCLOSURE: welded structure with turbo pre-cleaner, which protects generator from asphalt dust.

Central Control Panel: NEMA 4 type box, complete with all motor controls, emergency stop pushbuttons, Magnet Controls, Magnet Rectifier, Receptacle Connector for Return Conveyor, two 15 HP starters with quick disconnect plugs for radial stackers, and one dual 115-volt plug. Remote operators pendant with feeder stop and emergency stop pushbuttons;

ELECTRIC VARIABLE SPEED FEEDER CONTROL:

25 HP, adjustable frequency AC drive with remote variable speed switch; includes auxiliary circuit with starter installed in the central control panel for continuous fixed-speed operation.

AIR EAGLE REMOTE FEEDER START and STOP:

Remote control for starting and stopping feeder.

SERVICE PLATFORM: On RH & LH side of screen with guarding for plant discharge conveyor included.

Screens

Top Deck (5x16) built by Diester

Bottom Deck (5x16) built by Diester

Blow Bars : Low Chrome Ceramic
