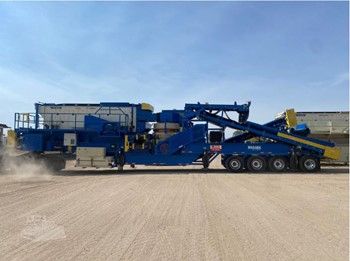

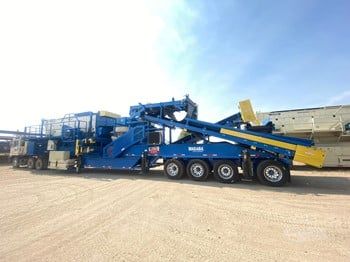

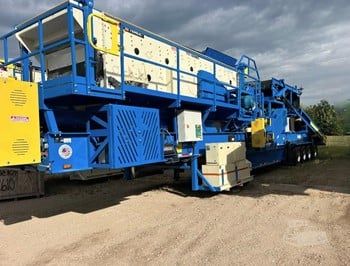

2024 MASABA HP300

Description

*CEDARAPIDS LJ-TSV 6x20 triple deck screen with side tension and coil springs.

Subject to screen surcharge prior to delivery

* Switchgear for Manual Crusher - NEMA 4 enclosure, Square D NEMA components,

300hp soft start, breakers, reversing starters for cross conveyors, new style push

buttons, main disconnect, emergency stop, and 3 extra starters for 20hp off plant

motors. NEMA 4 junction box with sub panel and distribution block for 300hp motor.

Panel Stand and 150ft lead cord included

*Air Ride Suspension

Crusher Motor - WEG 300hp, 1200rpm

* (6) Six Brute Jacks (replace (6) Six Lift Only Jacks

* Bypass chute on crusher hopper

* Split Screen Guard

*Cedar Rapids 620TD Screen & Motor Mount – Urethane bottom deck, rubber springs

Masaba Twin 44” Fine Material Washer – includes outboard tail bearings, AR discharge chute, folding wings, UHMW liner, & single 16” drainage pipe

* Switchgear – with NEMA 4 enclosure, breakers, reversing starts for cross conveyors

three position start/stop pushbuttons, main disconnect, emergency stop, two extra #2

starters for 20hp off plant motors, panel stand, VFD for fine material washer, and a 100’ lead cord

*13hp Electric Gas Powered Unit – with pump, reservoir, filter, valve body, and

plumbing to operate all hydraulic accessories

*Vulcanized Belts – Includes (2) 30” cross conveyors

*3/8” UHMW Liners – Installed in Under Screen Flume & Screw Discharge Chute

* Split Screen Guard

*Catwalk Step over at Screen Motor – with maintenance access point, ladder style

*Hydraulically Raise/Lower Slurry Box – power unit not included

*Hydraulic Run On Jacks & Power Unit - Qty. (4) 24” Masaba Brute jacks
