2024 METSO C106

Description

New Metso C106 Portable Jaw Crusher with 6x20 screen

Crusher:

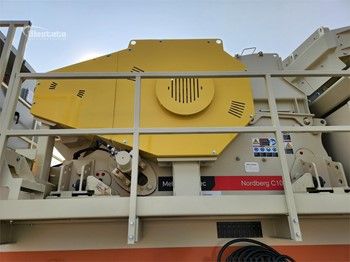

• Nordberg C106 (28”x 42”) single toggle Jaw Crusher

• 150 HP 1200 RPM crusher motor

• Non-welded steel frame construction consisting of heavy cast steel end sections

• Fully enclosed steel pitman; alloy steel forged eccentric shaft

• Four identical oversized grease lubricated spherical roller bearings with labyrinth seals

• Balanced flywheels

• Reversible manganese steel jaw plates

• AR steel side plate liners

• Hydraulic Wedge type setting adjustment

• Crusher support brackets and crusher tools

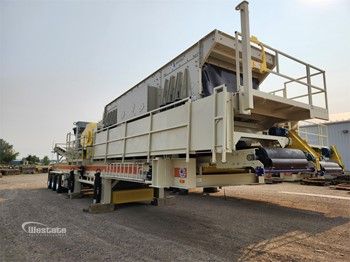

3 Axle Chassis:

• Triple axle chassis

• Heavy duty 25,000lb suspension w/ (16) 11:00 x 22.5 radial tires

• Heavy duty wide flange I-beams

• AR lined receiving hopper

• Control platform with ladder

• Guard for v-belt side and non drive side of jaw

• Upper and lower access platforms with diamond decked catwalk, access ladder and railing.

• Hydraulic folding walkway on one side of screen

• Qty (2) Swing down front legs

• Qty (2) Cribbing points between crusher and feeder to minimize required blocking

• Qty (6) Run On hydraulic jacks, Honda power unit, oil tank, valve and plumbing.

• Brake, Lights, Fenders, and Mud flaps

• Chord holder

• Guarding

• Booster axel attachment

• Manual Service Tie off

• Catwalk on 3 sides of crusher

• Rubber lined under screen hopper

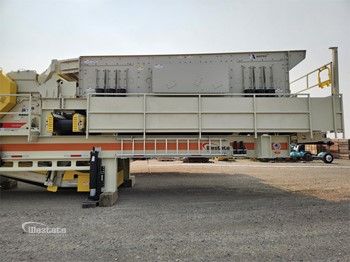

JCI 6x20 HD Screen Module:

• JCI 6x20 Heavy Duty Double Deck Screen

• 40HP Motor

• 48” Under Screen Conveyor

• 24” Cross conveyor for 2nd deck overs

Under Crusher Discharge Conveyor:

• Rear discharge conveyor 48” wide

• Hydraulic Raise and Lower

• 20 HP

• Impact Idlers

• 3-ply belt

• Skirt board rubber the entire length of conveyor.

• Belt scraper

• Vulcanized Splice

• 14ft discharge height

Electrical Starters and Controls

• Softstart for 150hp jaw motor

• Variable speed drive for feeder motor

• Starters and breakers for all on plant motors

• Two extra starter and breakers for off plant conveyors

• NEMA rated components

• Removable Stand
