2024 RUBBLECRUSHER RCJ65

Description

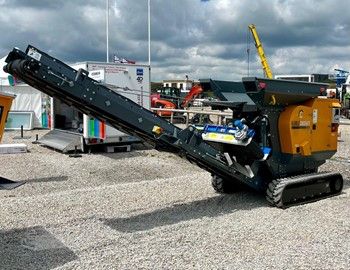

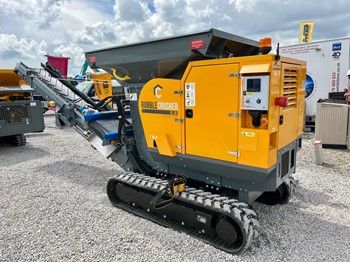

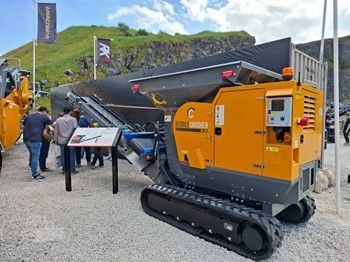

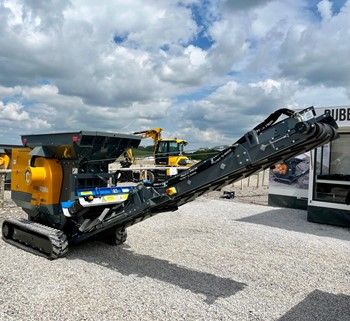

Introducing the RC-J65

RubbleCrusher’s line of compact, mobile Jaw Crushers offer an on-site solution managing C&D waste and recycling material for immediate reuse. These crushers are ideal for small- to moderate-sized crushing projects and provide a perfect solution for builders, landscapers, demolition and aggregate crushing applications.

Utilizing the same 650mm x 350mm (26” x 14”) Jaw Crusher module as RubbleCrusher’s RC150T Crusher, the RC-J65 offers an extended folding conveyor for larger product piles and a larger CAT C1.7 36Kw EU Tier V (US Tier 4 Powerpack) engine. Operators can upgrade the RC-J65 by adding the overband magnet to remove unwanted metals from the crushed material.

CAT C1.7 36Kw EU Tier V / US Tier 4 Powerpack

650mm x 350mm Jaw Crusher With Crusher Reversing Function

Optional overband magnet for unwanted metal removal

Extended Hydraulic Folding Product Conveyor

Rubber Track Undercarriage With Radio Remote Control

MAXIMUM FEED SIZE

520mm x 280mm / 20” x 11”

FEED HOPPER

1640mm x 1260mm / 64” x 50” + Spill Guard

JAW

650mm x 350mm / 26” x 14” Single Toggle

SETTING RANGE

15mm – 100mm / 5/8” – 4”

THROUGHPUT

5 – 50 Tonnes Per Hour

ADJUSTMENT

Hydraulic Wedge System

TRANSMISSION

Hydraulic Driven Crusher

ENGINE

CAT C1.7 36Kw EU Tier V / US Tier 4 Powerpack

FUEL CAPACITY

40 Litres / 10.5 US Gallon
