2024 SUPERIOR F400CCP

Description

INSTOCK!!! Washington, IN 47501

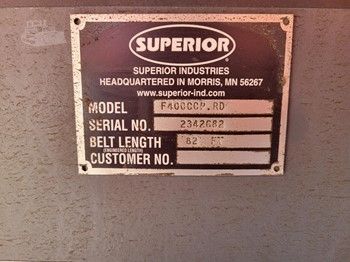

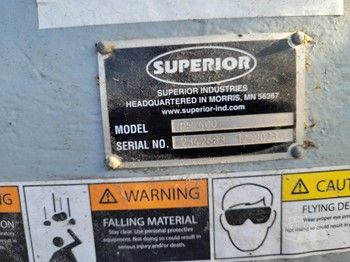

F400CCP.RD

Superior Portable Patriot® P400 Rear Discharge Plant

Plant Specifications

Construction-Main frame constructed of wide flange structural beams

Crusher Hopper-Under-crusher gathering hopper constructed of 1/4" A36 steel with AR 400 liner in wear areas

Overflow Chute-Crusher overflow chute directs material from feed basket onto the rear discharge conveyor, constructed of 1/4" mild steel

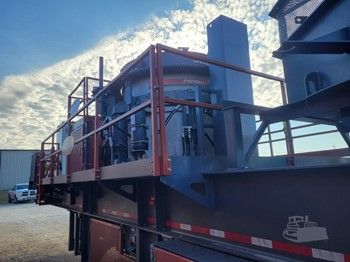

Walkway-Full 360° around crusher walkway and platforms

Observation Platform-Crusher observation platform included, includes stair access from lower walkway

Walkway Access-Access to walkway from one side of plant with steep angle stair

Access Gates-Self closing hinged gates at all walkway access points

Grease Package-Remote grease stations, multiple grease points on the outside of chassis frame

Tool Box-Not included

Cord Holders-Round pipe with end disc style cord holders welded to chassis frame

Paint-Standard Superior paint - Graphite Gray (RAL 7024) chassis, Window Gray [RAL 7040] and Graphite Gray Crusher, Superior Orange handrail and guarding

Guarding For all drive and tail pulleys, guards may not meet all local codes; customer is responsible to have guarding inspected

Chassis Specifications

Axle-Tridem axle with (12) 11Rx22.5 radial tires

Suspension-Spring suspension

Brakes-Complete air brake package

Fifth Wheel-Included

Lights-Brake and directional signals

Mud Flaps-Installed behind transport wheels

Cribbing Legs-(6) fixed structural steel cribbing legs and (2) swing down legs

Landing Gear-(4) hydraulic lift-only leveling legs with 9 HP Honda Power Unit

Tow Eye-Not included

Level Assist-Not included

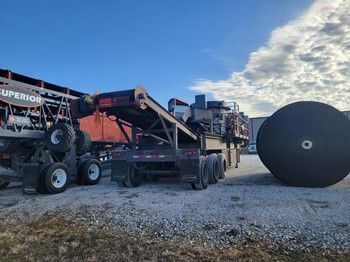

Rear Discharge Conveyor

Size-42" x 36' rear discharge conveyor

Conveyor Construction-Structural steel channel frame

Drive-Class II head end

Gear Reducer-Dodge shaft mount

Motor-15 HP motor TEFC

Belt Speed-300 FPM

Capacity-500 STPH of 100 PCF material

Drive Pulley-14" diameter, 3/8" herringbone lagged MD crown faced drum

Tail Pulley-12" diameter MD Chevron® wing pulley

Bearings-Dodge

Load Area Idlers-CEMA C, 5" dia. impact rolls, 16" spacing

Trough Idlers-CEMA C, 5" dia. steel rolls troughing idlers

Returns-CEMA C, 5" dia. steel rolls on 10' spacing

Belting-3 ply 3/16 x 1/16 330 PIW

Belt Splice-Factory vulcanized belt splice

Belt Scraper-Superior Exterra® Primary belt scraper

Cone Specifications

Crusher Model-P400

Cone Motor-(1) 400 HP TEFC crusher duty motor

Motor Base-Adjustable motor base with enclosed drive

Countershaft Blower-Creates a positive pressure inside countershaft box to prevent material contamination

CSS Display-Not included

Automation-Vantage® Automation with 30' tether

Backup Pump-Not included

Cavity Level Sensor-Not included

Cold Weather Kit-Not included

Liner Installation Type-Liners are fully installed and the backing material is poured in the crusher before shipping

Manganese Content-Liners are 18% manganese content

Liner Configuration Standard coarse liners supplied with machine

HPU-Hydraulic power unit with fabricated steel 50 gallon tank, and submerged gear type pump, mounted on chassis

Lube Unit--Package lube assembly with 120 gallon tank and 54 GPM submerged gear type pump, mounted on chassis

Air Cooler-Air type lube system oil cooler, relief valve and related cooler piping

Cone Warranty-Cone Lifetime Warranty coverage as per terms of lifetime warranty contract. To qualify contract must be signed and returned. If contract is not signed, or is breached lifetime warranty is void.

Electrical Specifications

Voltage-460 v / 3 ph / 60 hz

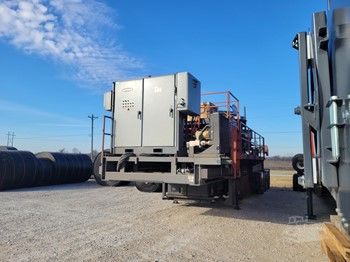

Control Panel-Skid mounted panel, with lifting eyes. Travels on plant and removed for operation. Includes starters for all on-board motors and (2) additional #2 starters and NEMA rated components Wiring-Factory supplied and installed wiring from panel to all on board motors. Customer responsible for wiring power into control panel, and additional starters.
