2024 SUPERIOR F5165IHS5420VGFCP

Description

F5165IHS5420VGFCP

Superior Portable Sentry® SR5165 Front Discharge HSI Plant

Plant Specifications

Construction- Main frame constructed of wide flange structural

beams

Crusher Feed Box- Constructed of 3/4" MS plate with 1/2" AR 400

weld-in liner

Crusher Discharge Chute- Mild steel construction with AR liners

in wear areas

Discharge Chute Skirting- Replaceable 60 durometer skirt board

rubber with clamp bars where required

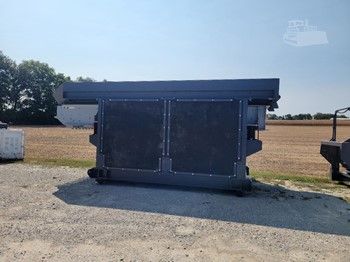

Feed Hopper Cartridge- Manual lift off feed hopper/vgf

cartridge for road transport

Feed Hopper- Constructed of 3/4" AR400 wear plate with

reinforced steel and sloped sidewalls, includes exterior side

panels fitted with conveyor belt rubber to prevent access to

VGF and assist in keeping debris or foreign material from

entering the area

Hopper Wings- Not included

Grizzly Fines Chute- Constructed of 1/4" A36 plate with 1/4"

AR400 weld-in liner

Fines Chute Access Door- Hinged side access door

Fines Chute Skirting- Replaceable 60 durometer skirt board

rubber with clamp bars where required

Walkway Platform(s)- Crusher observation crows nest

Walkway Access- removable aluminum ladder for access to crows

nest

Access Gates- Self closing hinged gates at all walkway access

points

Grease Package- Not included

Tool Box- Not included

Cord Holders- Not included

Paint- Standard Superior paint - Graphite Gray (RAL 7024)

chassis, Window Gray [RAL 7040] Jaw and VGF, Superior Orange

guardrails and guarding

Guarding- For all drive and tail pulleys, guards may not meet

all local codes; customer is responsible to have guarding

inspected

Sign Plate- Belt Tech sign plate installed

Chassis Specifications

Axle- Straight Quad axle with (16) 11Rx22.5 radial tires

Suspension- Spring suspension

Brakes- Complete air brake package

Fifth Wheel- Included

Lights- Brake and directional signals

Mud Flaps- Installed behind transport wheels

Cribbing Legs- (6) fixed structural steel cribbing legs

Landing Gear- (4) hydraulic lift-only leveling legs with 9 HP

Honda Power Unit

Tow Eye - Not included

Level Assist- Not included

Booster Axle- Not included or equipped to accept a booster.

Please consult Superior if a booster is required now or in the

future

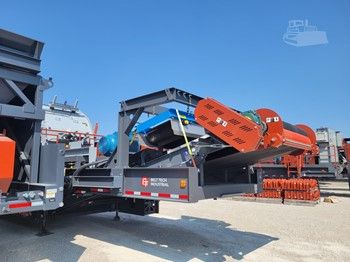

Discharge Conveyor

Belt Width- 60" discharge conveyor Conveyor

Orientation- Front Discharge (conveyor discharges over

kingpin)

Conveyor Support- Fixed height discharge

Conveyor Fold- Not included

Conveyor Construction- Structural steel channel frame

Drive- Class I head end

Gear Reducer- Dodge shaft mount

Motor- 20 HP motor TEFC

Belt Speed- 300 FPM

Capacity- 500 STPH of 100 PCF material

Drive Pulley- 14" diameter, 3/8" herringbone lagged CEMA crown

faced drum Tail Pulley- 12" diameter CEMA Chevron® wing

pulley

Bearings- Dodge

Load Area- CEMA C, 5" dia. impact rolls, 12" spacing

Trough Idlers- CEMA C, 5" dia. steel rolls troughing idlers

Returns - CEMA C, 5" dia. steel rolls on 10' spacing

Belting- 3 ply 1/4 x 1/16 330 PIW

Belt Splice- Factory vulcanized belt splice

Belt Scraper- Superior Exterra® Primary Scraper

Magnet- Self Cleaning Permanent Magnet with Direct Drive

Includes Support Structure over belt

Pan Feeder- 48" x 96" Pan Feeder with (2) 3HP vibrating motors

Grizzly Fines Cross Conveyor

Cross Conveyors- 24" x 12' long reversing cross conveyor

Drive- Class I head end

Gear Reducer- Dodge shaft mount

Motor- 7.5 HP motor(s) TEFC

Drive Pulley- 10" diameter, diamond lagged CEMA crown faced

drum

Tail Pulley- 10" diameter CEMA wing pulley

Bearings- Dodge

Idlers- CEMA C, 5" dia. Rolls, sealed for life ball bearings,

20°

Belting- 3 ply 3/16 x 1/16 330 PIW

Belt Splice- Factory vulcanized belt splice

Belt Scraper- (1) Exterra Primary scraper

HSI Specifications

HSI size Sentry SR5165

HSI Drive- 400 HP TEFC Crusher Duty Motor

Operating Speed- 500-650 rpm

Capacity Range- 274-440 STPH (150-200 MTPH)

Nominal Feed Opening- 48"x 65" (1200mm x 1650mm)

Max Feed Size- 31.5" (800mm)

Motor Sheave/V-Belt Drive- Drive motor sheave, bushing and

v-belts

Drive Guard- Multi-piece steel guard

Application- Recycle Rotor- Cast, Enclosed 4bar rotor.

Shaft- 4340 solid through shaft with expansion ring (keyless)

attachments

Blow Bars- Solid (one piece) Medium Chrome, cast blow bars

(flip able) for double the wear surface

Impact Curtain- Cast primary curtain with replaceable ends,

Fabricated secondary curtain with replacable cast liners.

Impact Curtain Adjustment- Hydraulically adjustable gap setting

Frame Protection- Fully lined frame protection with bolt in

AR400 liners

Inspection Ports- inspection doors and inspection panels for

hard to reach areas

Blow Bar Retention- Wedge style for reliable performance

Maintenance Access- Hydraulic mainframe separation to allow for

easy and safe maintenance access

Safety Systems- Rotor lock pin, (5) micro safety switches and

over center lid opening with automatic safety arm

Blow Bar Tools- Blow bar lifting and flipping tool included

Crusher Sheave- Crusher mounted sheave and bushing included

Bearings- SAF spherical roller bearing

Lubrication- Grease lubrication

Hydraulics- Hydraulic power unit and controls for impact

curtain adjustment and crusher frame maintenance access

VGF Specifications

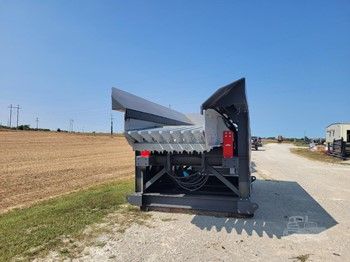

VGF Size- Intrepid® 54" x 20' Vibrating Grizzly Feeder

VGF Motor- 40 HP TEFC VGF V-Belt Drive- with drive guard

Pan Liner- Replaceable 1/2" thick AR liners

Grizzly- 5 degree sloped single 5" taperd bar

Springs- Outboard spring mount arrangement

Grizzly Spacing- 4" nominal opening

Electrical Specifications

Voltage 460 v / 3 ph / 60 hz

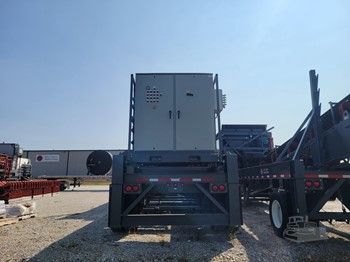

Control Panel- Skid mounted panel, with lifting eyes. Travels

on plant and removed for operation. Includes starters for all

on-board motors and (2) additional #2 starters and NEMA rated

components

Wiring- Factory supplied and installed wiring from panel to all

on board motors. Customer responsible for wiring power into

control panel, and additional starters Wireless Remote- Not

included.
