2024 SUPERIOR P300

Description

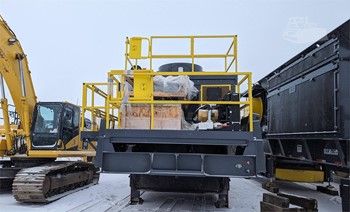

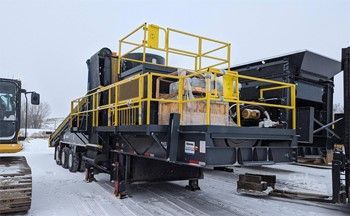

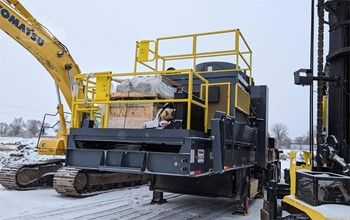

PORTABLE FABTEC/SUPERIOR P300 PATRIOT RFSD CONE PLANT WITH 42" SIDE FOLD CONE DISCHARGE CONVEYOR AND 42" FEED CONVEYOR:

SUPERIOR PATRIOT P300 CONE CRUSHER:

300 HP 1200 RPM 480V/3PH/60HZ

MAIN FRAME ONE PIECE CAST STEEL MAIN FRAME ASSEMBLY, AR STEEL

LINERS, 4340 FORGED STEEL SHAFT, BRONZE SEAT LINERS WTIH RETENTION

LIP, BRONZE PIN BUSHINGS, AND AST ARM GUARDS

CAST STEEL ADJUSTMENT RING AND CLAMPING RING WITH INTERNAL

THREADS, (8) CLAMPING CYLINDERS, (5) INDEXING PINS, ADJUSTMENT MOTOR MOUNT,

(3) VIBRATION SENSORS DETECT ADJUSTMENT RING MOVEMENT

FORGED STEEL DRIVE ADJUSTMENT RING, DRIVE RING SUPPORTS WITH MOLDED

URETHANE WEAR PADS, PLANETARY DRIVE UNIT WITH PINION, HYDRAULIC DRIVE MOTOR

(SPRING APPLIED BRAKE), (2) BOWL ADJUSTMENT SENSORS

CAST STEEL BOWL ASSEMBLY WITH EXTERNAL THREADS, STEEL ADAPTER RING WITH

THREADED RETENTION HARDWARE, FITTED WITH MANGANESE STEEL LINER

CAST STEEL CONE HEAD ASSEMBLY WITH FORGED STEEL HEAD BALL, RAISED SEAT WITH

WEAR INDICATOR GROOVE, BRONZE UPPER AND LOWER BUSHINGS, MOLDED URETHANE

T-SEAL

CAST DUCTILE IRON ECCENTRIC WITH BRONZE BUSHING

CAST STEEL COUNTERWEIGHT, POURED LEAD WEIGHT, AR STEEL COUNTERWEIGHT GUARD,

FORGED STEEL SPIRAL BEVEL GEAR, MOLDED URETHANE U-SEALS

FORGED STEEL SOCKET WITH BRONZE LINER

CAST STEEL COUNTERSHAFT BOX WITH BRONZE BUSHINGS, FORGED STEEL COUNTERSHAFT

AND SPIRAL BEVEL PINION GEAR

TRAMP RELEASE SYSTEM WITH (6) HYDRAULIC CYLINDERS MOUNTED ROD END DOWN

WITH PROTECTIVE BOOT COVERS, RELIEF VALVE FOR TRAMP PRESSURE RELIEF, SINGLE GAS

CHARGED BLADDER ACCUMULATOR

VANTAGE AUTOMATION

300 HP @ 1200 RPM TOSHIBA TEFC CONE MOTOR:

COG DRIVE BELT SYSTEM FOR 870 COUNTERSHAFT INPUT RPM (TYPICAL FOR 1” CRUSHING)

ENCLOSED DRIVE BELT GUARD AND BELT DRIVE:

OBSERVATION STAND INCORPORATED INTO WALK-IN DRIVE GUARD:

FOR EASY CONE DRIVE MAINTENANCE AND CONE FEED OBSERVATION.

A USER-FRIENDLY RECOMMENDATION.

HEAVY DUTY CONE MOUNT AND AR LINED UNDER CONE DISCHARGE HOPPER WITH ½" X 6" ADJUSTABLE GUM RUBBER WIPERS.

STANDARD CONE FEED RING WITH EXPANDED METAL WINDOWS:

STANDARD HOLD-DOWN BRACKETS INCLUDED.

PLANT MOUNTED OVER-FLOW CHUTE DESIGNED TO STAY IN PLACE WHEN UNDER CONVEYOR IS FOLDED:

42" - REVERSIBLE SIDE-FOLD UNDER CONE CONVEYOR; 10 HP TEFC MOTOR:

SEW KA87 10 HP RIGHT ANGLE DRIVE.

INCLUDES TYPE “E” BEARINGS ON HEAD PULLEY.

14” VULCANIZED LAGGED HEAD PULLEY, 12” SELF-CLEANING WING TAIL PULLEY.

3 PLY BELT 1/4" COVER BELTING WITH VULCANIZED SPLICE

RUBBER DISC RETURN ROLLERS

ORANGE GUM RUBBER FLASHING

SUPERIOR XTERRA 42” WIPER

CLOSE SPACING ON CEMA C IDLERS UNDER CONE, THEN 36" SPACING.

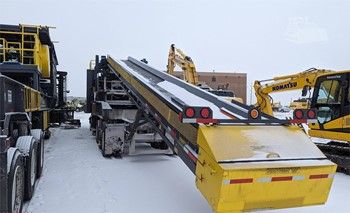

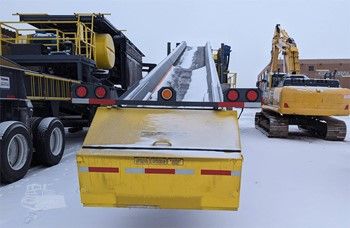

HYDRAULIC FOLDING SIDE DISCHARGE CONVEYOR FOR TRANSPORT.

42" X 42' CONE FEED CONVEYOR, 15 HP TEFC MOTOR:

SEW KA87 15 HP RIGHT ANGLE DRIVE ~VS~ CONVENTIONAL DRIVE:

INCLUDES TYPE “E” BEARINGS ON HEAD PULLEY.

3 PLY ¼” COVER BELTING WITH VULCANIZED SPLICE

RUBBER DISC RETURN ROLLERS

ORANGE GUM RUBBER FLASHING

SUPERIOR XTERRA 42” WIPER

IMPACT IDLERS IN FEED AREA, THEN 36" SPACING ON CEMA C IDLERS.

14” VULCANIZED LAGGED HEAD PULLEY, 12” SELF-CLEANING WING TAIL PULLEY.

PPI IMPACT SYSTEM ~VS~ IMPACT IDLERS ON FEED AREA OF FEED CONVEYOR:

HYDRAULIC RAISE & LOWER FEED CONVEYOR TO GIVE ADEQUATE CLEARANCE TO

MOVE UPPER BOWL ASSEMBLY:

3 AXLE CARRIER 24" WF 68# BEAMS:

9700 HUTCH SUSPENSION, 10' SPAN.

22,500# AXLES AND 11:00RX22.5 TIRES.

AIR BRAKES, LED BRAKE LIGHTS, LED MARKER LIGHTS, LED STROBE, REFLECTOR TAPE, AND MUD FLAPS.

FOUR GROUND SUPPORT STANDS WITH JACKING LEGS.

(6) LEG FAB TEC 70K RUN-ON SYSTEM KIT:

18” STROKE CYLINDERS 70,000 LB. CAPACITY (AT 2500 PSI) WITH SAFETY-LOK CIRCUIT.

DELTA HPX-200 12-VOLT POWER UNIT.

SPOOL VALVE~ NUMBER OF BANKS TO MATCH LEG QUANTITY.

CYLINDER MOUNTING PLATES & HARDWARE.

HEAVY DUTY FOOT PADS.

SELF CONTAINED HONDA 8 HP HYD. POWER PACKAGE ~VS~ HPX 200 12V:

ELECTRIC START.

12 GALLON HYDRAULIC RESERVOIR WITH FILTER PROTECTION.

2 1/2 GPM PUMP.

WALKWAYS AROUND CONE WITH DIAMOND PLATE FLOOR, TOE BOARDS, AND 42" TUBESTEEL HANDRAILS:

FRONT 5TH WHEEL PLATFORM FOR SWITCHGEAR STORAGE

SELF CLOSING SAFETY GATE AT LADDER OPENINGS.

TOOL BOX MOUNTED ON CHASSIS (2) - CONE TOOLS AND PLC CONTROL BOX.

SAFETY GUARDS, SANDBLASTED CHASSIS, RUST INHIBITOR PRIMER, AND TWO FINISH COATS INCLUDED.

ELECTRICAL SWITCHGEAR P300RFSD AS DESCRIBED BELOW:

NEMA 4 ENCLOSURE, CORD CAGE, LEG KIT, SETS ON GROUND FOR OPERATIONS, SETS

OVER KINGPIN FOR TRANSPORT. MAIN BREAKER WITH LOCKABLE OPERATOR.

300 HP SOFT STARTER

FVNR 10 HP LUBE MOTOR

FVNR 10 HP HYDRAULIC PUMP

FVNR 5 HP COOLING FAN

FVNR 1/3 HP COUNTERSHAFT BLOWER

6 KW 480V 3PH TANK HEATER FEED BREAKER

6 KW 480V 3 PH HYD TANK HEATER FEED BREAKER (MAY NOT BE ONE)

FVNR 10 HP CRUSHER DISCHARGE (ON PLANT)

FVNR 15 HP (INTERLOCKED) FEED CONVEYOR (ON PLANT)

FVNR 20 HP RETURN CONVEYOR WITH 60 AMP HUBBELL RECEPT

150FT REMOTE PENDANT, E-STOP, HOUR METER, SAFETY START HORN.

VANTAGE AUTOMATED PLC INTERFACE FOR CRUSHER CONTROL AND MONITORING.

100' POWER CORD

GUARDING - WE DO NOT WARRANT THAT MANUFACTURERS’ GUARDING WILL MEET ALL LOCAL CODES. IT IS THE RESPONSIBILITY OF THE END USER TO HAVE GUARDING CHECKED BY A LOCAL INSPECTOR, PRIOR TO STARTUP OF EQUIPMENT OPERATIONS, CORRECTIVE ACTIONS AND ASSOCIATED EXPENSE ARE THE RESPONSIBILITY OF THE END USER.
