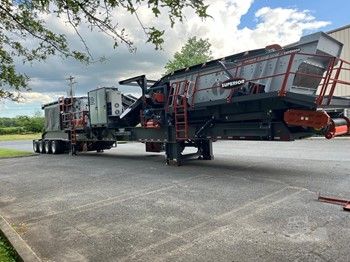

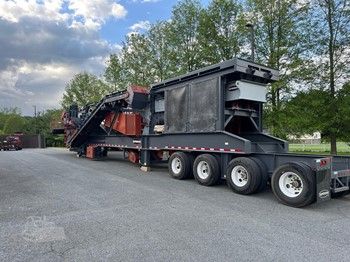

2024 SUPERIOR SENTRY 4520HSI

Description

Superior Sentry® 4250 Closed Circuit Horizontal Shaft Impactor Plant

Carrier Chassis

Construction Main frame constructed of wide flange structural steel beams

Axle Quad axle with (16) 11Rx22.5 radial tires, Split quad, 8' spacing

Fifth wheel Included

Brakes Complete air brake package

Lights Brake and directional signals

Mud flaps Installed behind transport wheels

Cribbing legs (8) fixed structural steel cribbing legs

Grease Package Remote grease station, multiple grease points outside of chassis frame

Landing gear (4) Hydraulic Leveling Cylinders, 9HP Honda Power Unit

Tool Box Not Included

Level Assist Not Included

Sentry 4250 Horizontal Shaft Impactor

4250 HSI Crusher Supply and Installation for a 4250 HSI crusher

Crusher Components Drive sheave on crusher

Horsepower Requirements (1) 300 HP

Drive sheave, drive belts and drive guard

Crusher Hoppers Crusher Feed Chute with chain and rubber curtain

Paint Standard paint - Window Gray [RAL 7040] on HSI. Graphite Gray [RAL 7024] on guarding

Intrepid® Vibrating Grizzly Feeder

4818 VGF

Screen Components Drive sheave on screen

Electric Drive Motor (1) 30 HP WEG drive motor

Drive sheave, v-belts and drive guard

Grizzly Section 5' cartridge style grizzly section with adjustable grizzly bars with 4" nominal openings

Feeder Angle Feeder mounted horizontally (0 degrees)

Paint Standard paint - Window Gray [RAL 7040] on feeder body. Graphite Gray [RAL 7024] on guarding

Anthem 6162 Inclined screen

Screen Size Guardian 6x16 2-deck Inclined screen

Drive Right hand

Configuration Operate in inclined position, hydraulic raise, mechanically pinned in operating position

Motor 30 HP, 1200 RPM TEFC, NEMA Premium "Design C"

Shaft Housing Mild steel protection clamped to shaft housing

Springs Standard coil springs

Feed Box 24" Feedbox with 1/4" AR liners

Deck Single crown deck to support wire cloth media screen

Screen Media Customer supplied and installed

Under Crusher Pan Feeder

Feeder 48" x 71" Electromechanical Vibratory Feeder

Power (2) 2Hp

Liners Replaceable 3/8" AR400 Liners

VFD NEMA 1 rated variable frequency controller

Mounted below crusher, accepts feed from crusher and discharges onto crusher discharge conveyor

48" Crusher Discharge conveyor

Frame Channel frame conveyor, discharges material onto the screen feed conveyor

Fold Hinged section that raises with the screen

Drive 20 HP drive - WEG electric motor, 1800 RPM, TEFC,

Gear Reducer Dodge TAII

Bearings Dodge

Backstop Not Included

Head Pulley 16" diameter, crown face, 3/8" herringbone lagged drum

Tail Pulley 14" diameter Chevron® wing pulley

Belting 3 ply 3/16 x 1/16 330 PIW

Splice Vulcanized

Superior Idlers Superior CEMA C, 5" diameter rolls

Load Area Superior Cema C 5" Rubber Impact rolls (QTY4)

Trough 35 degrees, 5" diameter rolls,

Returns Flat 5" diameter steel rolls, 10' on center

Take ups Manual screw type take-ups

Scraper Belt cleaner - Exterra® primary belt cleaner

48" Screen Fines conveyor

Construction 1/4" AR plate steel sides

Operation raises and lowers with screen structure

Material Receives screen undersize material and discharges off plant

Flashing Adjustable rubber full length

Fines Hopper Liner Not Included

Construction 48" belt width, structural steel channel main frame

Motor 15 HP 1800 RPM TEFC

Drive pulley 12” diameter, 3/8” herringbone lagged drum

Tail pulley 12” diameter, MD Chevron® wing pulley

Carry Idlers CEMA C, 5" dia. Rolls, sealed for life ball bearings

Returns CEMA C, 5" dia. Steel rolls on 10' spacing

Belting 3 ply 3/16 x 1/16 330 PIW

Take ups Manual screw type take-ups

Scraper Belt cleaner - Exterra® primary belt cleaner

(2) 24" wide x 12' long reversing cross conveyor

Frame Structural steel channel main frame

Operation Mounted angle iron slide track to manually move to discharge from either side of chassis

Material Receives top and bottom deck oversize material

Drive 7.5 HP motor, v-belt drive with drive guard

Gear Reducer Dodge shaft mount reducer

Head Pulley Head pulley - 10" diameter drum, crown face, 3/8" diamond lagging

Tail Pulley Tail pulley - 10" diameter wing pulley

Bearings Dodge bearings

Take Ups Manual screw take-ups

Superior Idlers Carry idlers - C5, 20 degrees trough, channel mount,

Belting Belting - 3 ply, 3/16" x 1/16" 330 PIW

Splice Belt splice - Vulcanized

Scraper Belt cleaner - Exterra® primary belt cleaner

(1) 24" wide long recirculation conveyor

Frame Structural steel channel main frame

Operation Hydraulic raise and lower from transport to operating position

Material Receives screen oversize material from cross conveyor(s)

Drive 7.5 HP motor, v-belt drive with drive guard

Gear Reducer Dodge shaft mount reducer

Head Pulley Head pulley - 10" diameter drum, crown face, 3/8" diamond lagging

Tail Pulley Tail pulley - 10" diameter wing pulley

Bearings Dodge bearings

Take Ups Manual screw take-ups

Superior Idlers Carry idlers - C5, 20 degrees trough, channel mount, spaced 26" OC

Belting Belting - 3 ply, 3/16" x 1/16" 330 PIW, cleated

Splice Belt splice - Vulcanized

Scraper Belt cleaner - Exterra® primary belt cleaner

Electrical

Voltage 480v / 3 ph / 60hz

Panel Enclosure Skid mounted panel, with lifting eyes. Travels on plant and removed for operation

Components NEMA components, with start/stop pushbuttons, amp meter, hour meter and warning light

Starters Starters for all on plant motors and (2) additional #2 starters (up to 25 HP motors) VFD for VGF

Wiring Factory supplied and installed wiring from panel to all on board motors. Customer responsible for wiring power into control panel, and additional starters
