BEAR CLAW W200RDS

Description

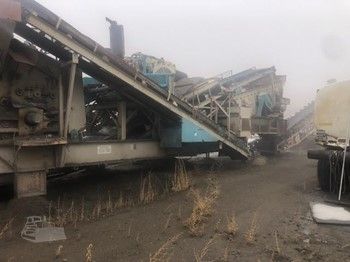

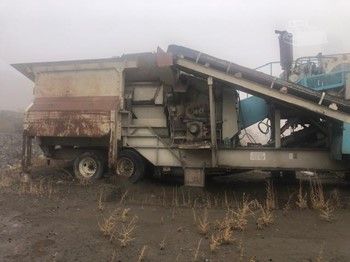

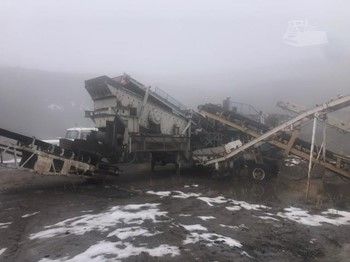

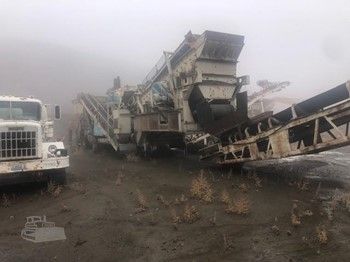

Crusher Plant with:

Bear Claw Horizontal Shaft Impact Crusher Recirculating Model W200RDS

Serial #1000-89 (0BL) 1996 Model purchased from Crusher Rentals

CAT3406 Engine

Oil filter WIX#51722

Air Filter Outer: WIX#46591

WIX#46411

Main Drive Belts to Impactor #8V3350

Main Drive Belts to Generator #8v1320

Hydraulic Pump Belts #5VX850

Engine Radiator Fan #BX112

4/2013 Approx. 5500 hours, oil, oil filter and air filters replaced

9/2013 Rebuilt/Replaced RS Hydraulic Cylinder that opens impactor, top door (PSP-338), piston seal (512501750250/9250), wiper (12501250-187B, Rodwiper (235N70)

2/2014 Replaced pilot bearing in flywheel bore and had flywheel bore sheave by Eagle Machine

2016 Replaced belt for return conveyor 24”x65’ 10” x ½” thick, ¼” rubber 3 Ply 1/16” rubber

6/2020 Replaced lower skirt rubber on screen, replaced bearings on one can rubber type (Tinker #204RR6 bearings), drive and bearing SKF6316-2RS 1/C351GJN, rear bearing SKF6312-2RS 1/C3GJN

Fabtec Vibratory Feeder

VGF.52.17.H.66.96

Fabtec Moseo, Idaho 1-208-8433

Roy Parts

¼” O-Ring Material Glued 28 fet

Seal #21086-2186 Chicago Rawhide

745-900RPM

CAT Engine 3406 Serial #3ER00694

Arr#1303360

Front Crank Shaft Seal #142-5867

Fan # CAT 4N2571

Screen 63 ½” Inside Width

Screens 62”OSH x 4’ Long, 62 ½” OSH x 4’ Long

Hewitt Robins Vibrax

5’x16’ 2-Deck Screen

Serial #C70678401

Shaft RPM 3/8 800

Style fx16 V-11

Recirculating Belt Magnetic Starter SquareD

#8536SD01S Series A

Had B-40 Thermals 2124Amp, changed to B-88 38.3Amp-40Amp

Drum motor is a Ven Der Graas

NS22126-01

Model Year 1997

Type TM500A75-430-TBLH

Volt 460 H260 HP30

Amp50 Phase 3

378Fpm Back Stop

Hydraulic belt-drive off engine to run to the feeder was originally (3) B82 but were replaced with #5VX850 and seems to work great. Part #SSF0033035-25

Spokane Industries 3035 25% Chrome Blow Bar 55” wide

Torgeson #C188, uses Torgeson style rotor shields, single-bolt blow bar is a crush-boss style

Vibratory Unit 5/8” bolts-lubed-230ftlb

¾” bolts-lubed-460ftlb

2027 RPM Engine-58.62HZ-675 Rotor RPM for 4 rotor

2072 RPM Engine-60HZ-690 Rotor RPM should be 400

2117 RPM Engine-61HZ-708 Rotor RPM 450

Includes on-board air compressor and tank

All head pulleys are internally gear-driven
