GATOR PEX1039

Description

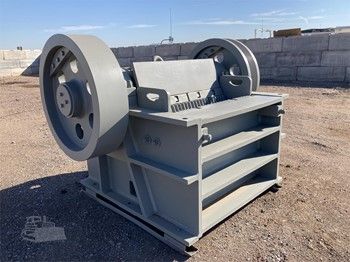

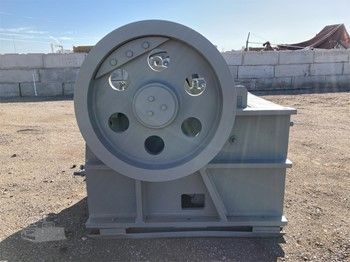

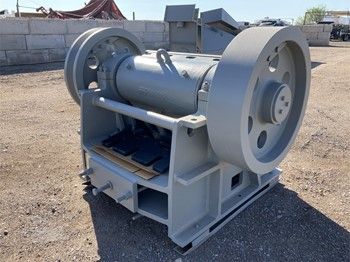

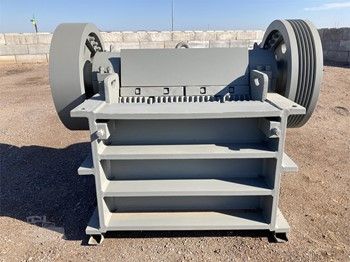

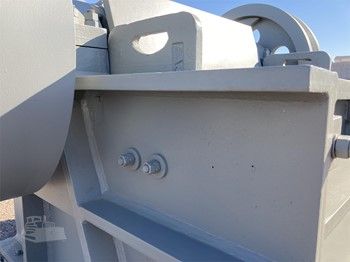

New Gator 10"x39" Jaw Crusher PEX1039

Features:

- Single Wall main frame of stress relieved steel.

- Open back for easy maintenance.

- All working parts lubricated for moisture and dirt protection.

- Reversible manganese jaw dies for maximum wear life.

- Spherical, self-aligning roller bearings.

- Isolated, close running annular/labyrinth seals protect bearings from dust and water.

- Removable pitman/bearing assembly for maintenance ease.

- Hydraulic or Manual shim adjustment.

- Heavy duty, cast steel pitman with machined barrel.

- Machined pitman face for full swing jaw die support.

- Smooth running flywheels with compression ring fastening arrangement.

- Pitman wear plate.

Specifications:

- Feed opening: 10"x39"

- Discharge setting: 3/4" to 3"

- Maximum feed size: 8"

- Production range:15 to 60 TPH

- Required horsepower: 40 HP

- Rotor speed: 330 RPM

Optional Features:

- Electric Motor 1200 RPM or 1800 RPM

- Drive Sheave and Bushing

Freight Dimensions:

- Width: 6' 7"

- Length: 5' 5"

- Height: 4' 7"

- Weight: 14,300 lbs.

Weights (LBS):

- Crusher: 14,300

- Flywheel: 1,100

- Fixed Jaw die: 680

- Movable Jaw die: 770

Standard Part Dimensions (Inches):

- Flywheel diameter: 35-3/8”

- Fixed Jaw Depth: 28”

- Movable Jaw depth: 31”
