GATOR PEX1047

Description

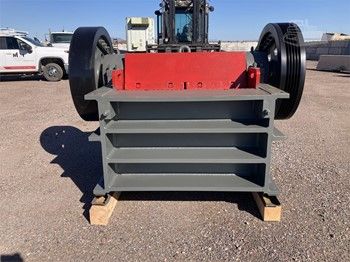

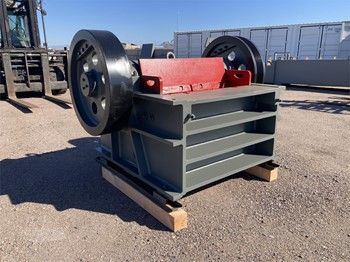

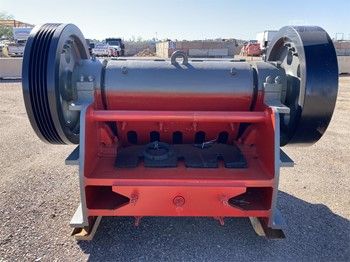

New Gator 10"x47" Jaw Crusher PEX1047

Features:

- Single Wall main frame of stress relieved steel.

- Open back for easy maintenance.

- All working parts lubricated for moisture and dirt protection.

- Reversible manganese jaw dies for maximum wear life.

- Spherical, self-aligning roller bearings.

- Isolated, close running annular/labyrinth seals protect bearings from dust and water.

- Removable pitman/bearing assembly for maintenance ease.

- Hydraulic or Manual shim adjustment.

- Heavy duty, cast steel pitman with machined barrel.

- Machined pitman face for full swing jaw die support.

- Smooth running flywheels with compression ring fastening arrangement.

- Pitman wear plate.

Specifications:

- Feed opening: 10"x47"

- Maximum feed size: 8"

- Jaw plate length: Fixed 28", Swing 31"

- Closed side setting range: 3/4" to 3"

- Machine weight: 16,900 lbs.

- Crushing capacity: 20 to 80 TPH

- Replacement bearings: 200 mm, SKF 22240CC/W33, center groove lubricated

- Speed eccentric shaft: 330 RPM maximum

- Flywheel diameter: 39.375"

- Motor requirement: 50 HP 1200 RPM

Freight Dimensions:

- Width: 7' 3"

- Length: 6' 4"

- Height: 4' 9"

- Weight: 16,900 lbs.
