New 2019 METSO Crushers HP200

Description

Description

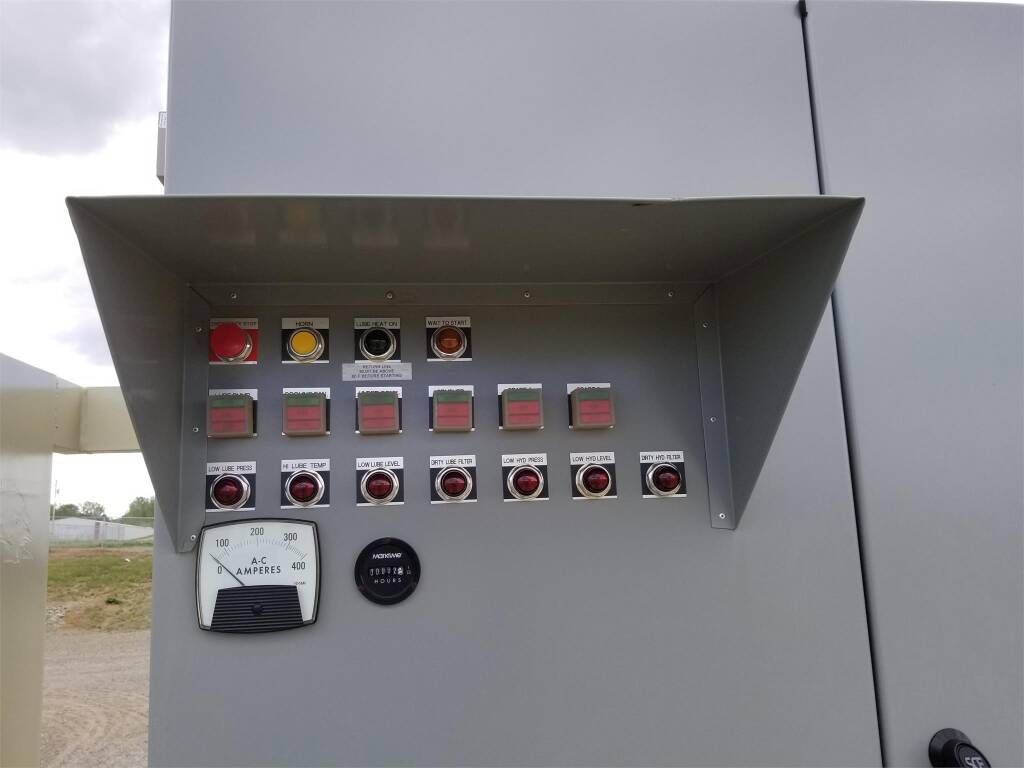

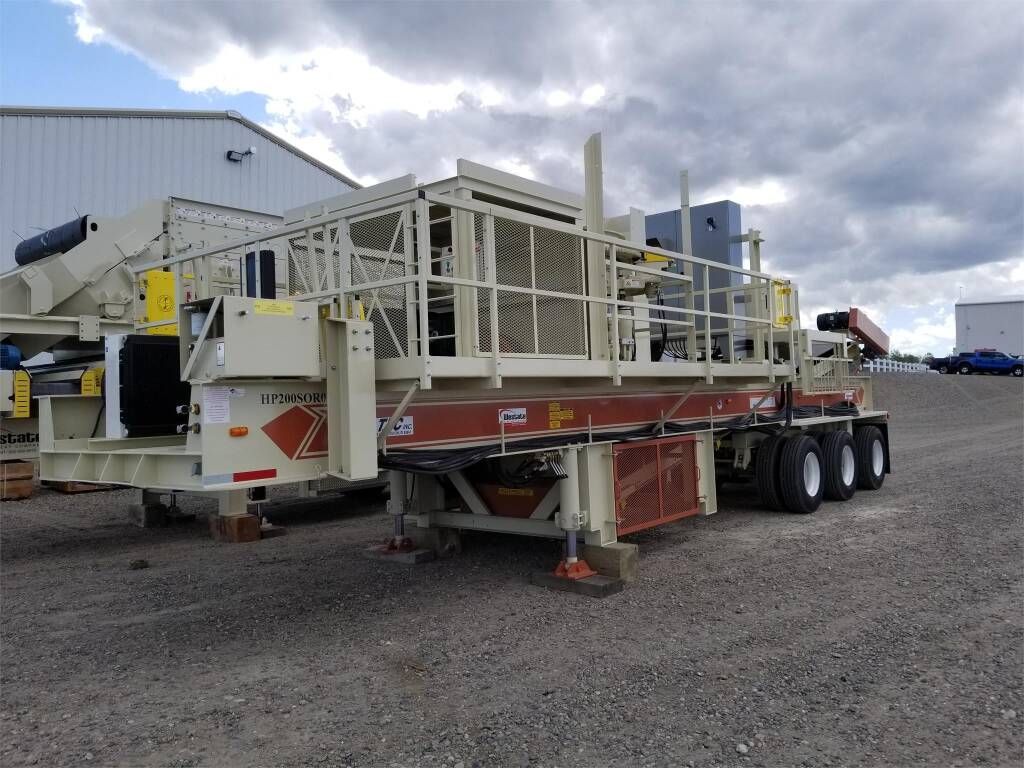

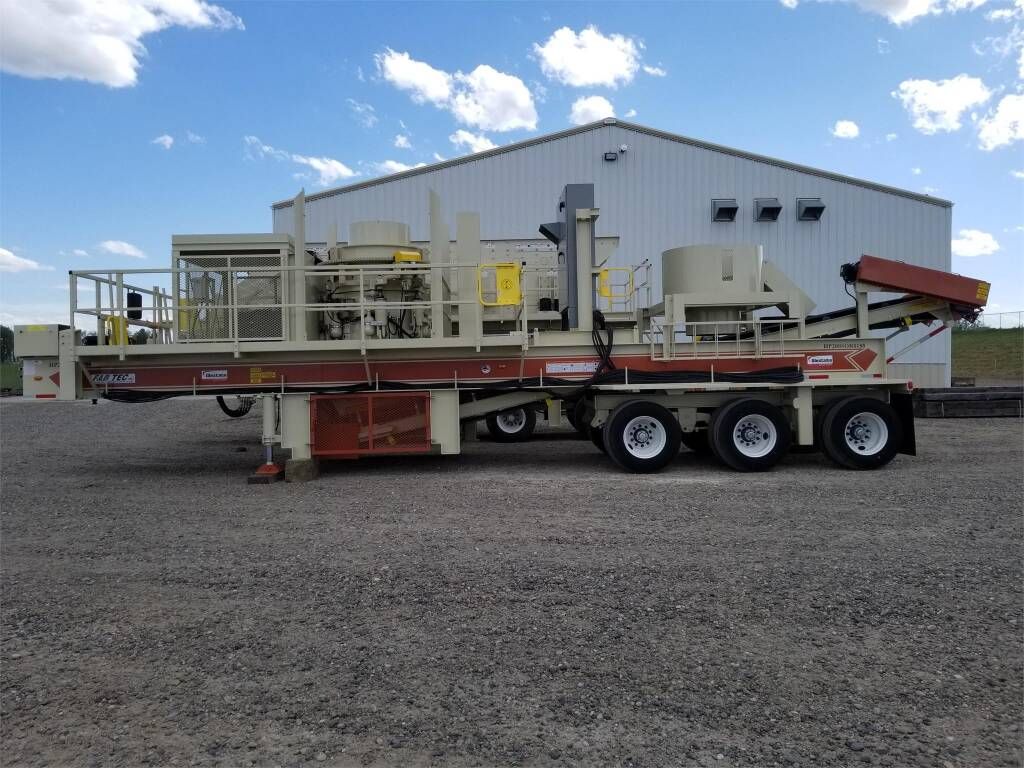

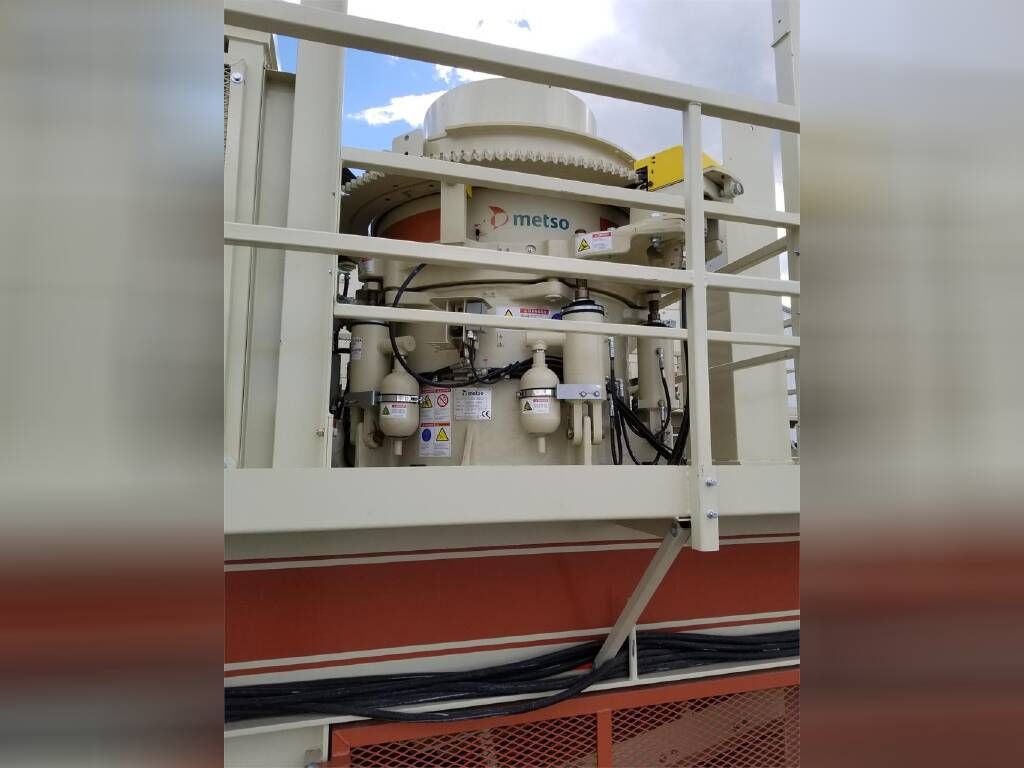

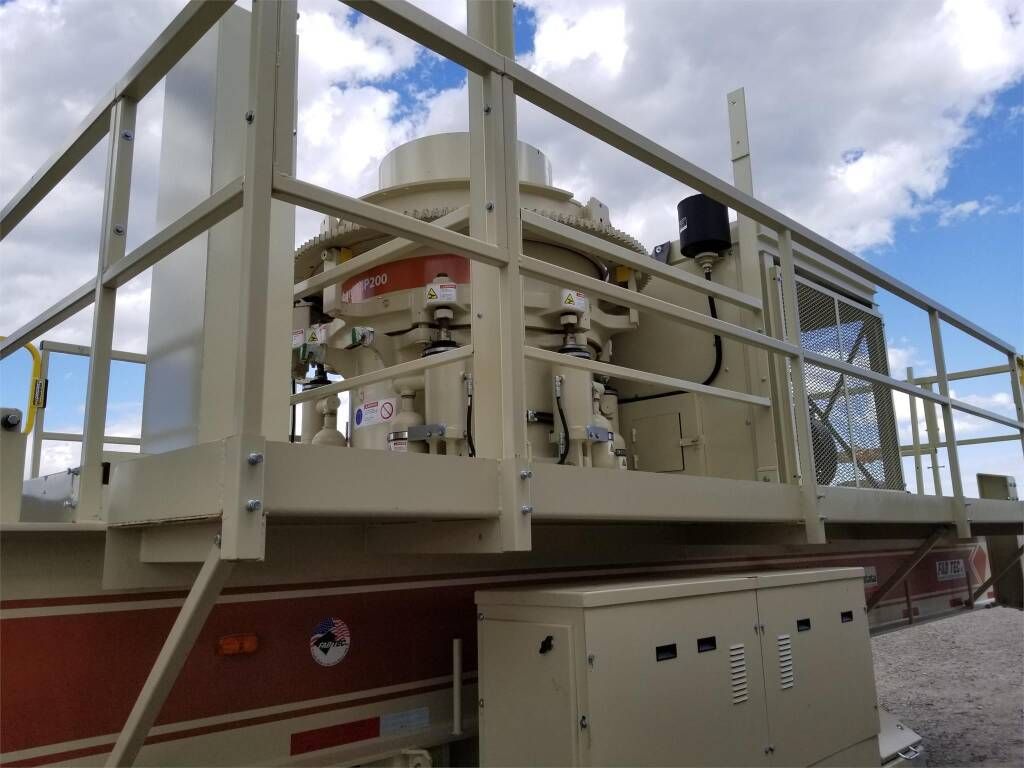

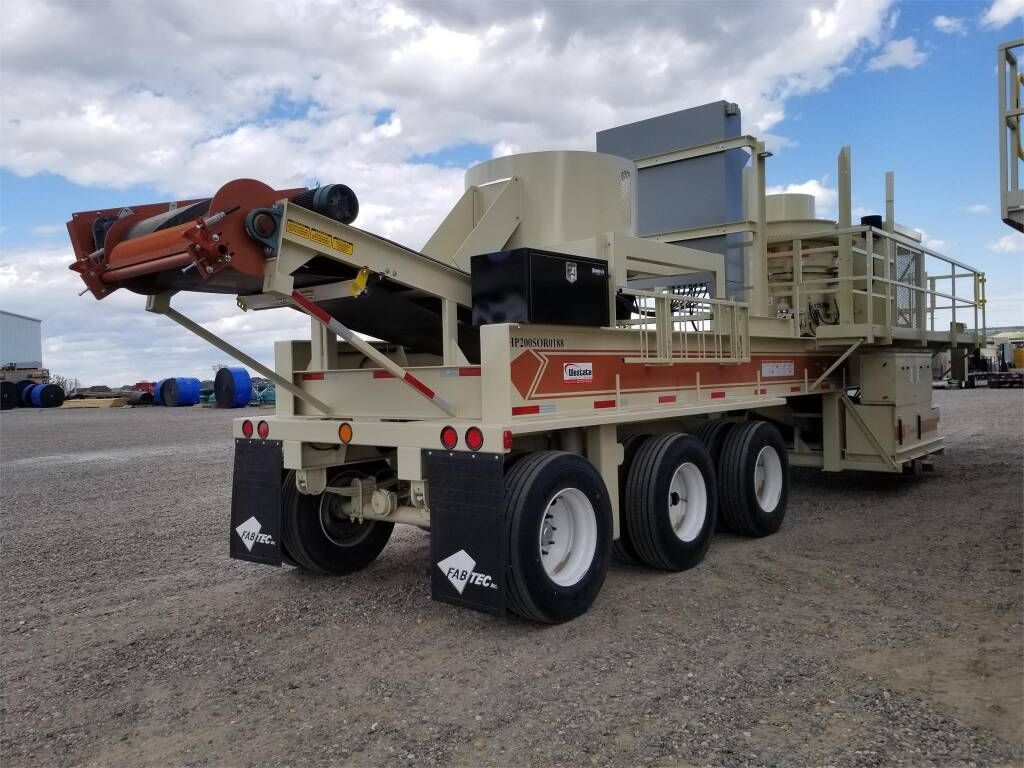

2019 METSO, HP200 Aggregate Equipment - Crusher, New Metso HP 200 Rear Discharge Cone Plant New HP 200 CONE: 200 HP 1200 RPM Cone Motor Hydraulic adjust underload 80% Pass the closed side setting Multiple Liner Configurations NEW TRIPLE AXLE CARRIER: Heavy duty 24 x76# wide flange beam Tandem axle chassis Under crusher hopper with rock ledge, constructed of 3/8 AR steel Cone rock box feed hopper with over flow chute- feed hopper to rest on chassis pegs during travel Motor and crusher belt guard/cage assembly Qty (2) hydraulic jacks, 12 volt hydraulic unit, oil tank, valve and plumbing Four ground support stands with jacking pads Removable Switch Gear mounting stand Diamond plated catwalk, access ladder and removable railing Two folding front legs for blocking Guarding Standard 5th wheel PL, air brakes both axles, lights, & mud flaps.42" UNDER CONE CONVEYOR: 15 HP TEFC 42 wide straight under crusher end discharge conveyor 3 Ply belt CEMA C idlers Belt Cleaner Vulcanized lagged head pulley, self cleaning wing tail pulley Formed skirt board rubberNEW Electrical starters and ControlsSerial Number:
