NORDBERG/SYMONS 4.25 STD

Description

FEATURES:

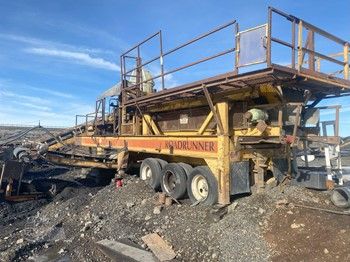

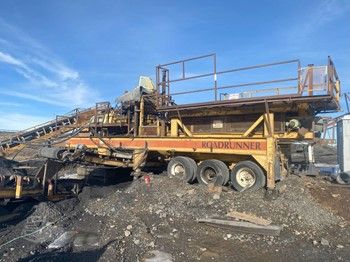

Triple Axle Carrier…

• (12) wheels tires

• Air brakes

• Collection hopper for crusher

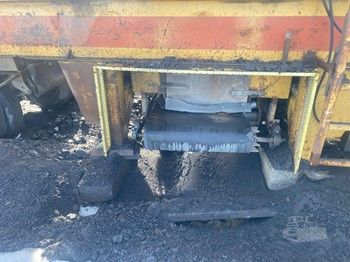

• Under crusher conveyor with side discharge folding conveyor

• Booster bracket for booster attachment (booster not included)

Mount for El-Jay 5' x 16' Three Deck Screen (EXLCUDES SCREEN)…

• Steel collection hopper

• Under screen conveyor missing head pulley, gearbox, v-belts and drive guard.

• Under screen conveyor discharges out axle end of trailer.

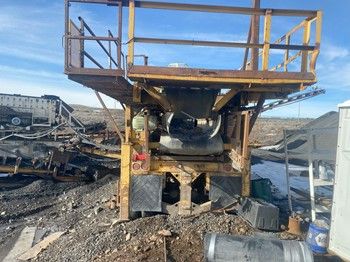

Symons 4-1/4FT Cone…

• Cast steel main frame

• Threaded bowl rotates during adjustment for even liner wear

• Hydraulic lock posts for adjustment and clamping of the bowl

• Hydraulic pushing rams for crusher close side setting adjustment

• Cast steel head with heavy duty main shaft

• Coil springs clustered around the cone crusher that allow tramp iron relief when and uncrushable enters the crushing chamber.

• All bearings are bronze bushings

• Heavy-duty straight cut gears

• Lube skid with external lube pump, gearbox and oil pump

• Lube oil tank

• Electric/hydraulic pumping unit with spool valves for crusher adjustment

• 200 hp, 1200 rpm, electric drive motor

• New Main Shaft Installed recently

• Standard Medium with IFOR crusher liners installed recently apporximately 90% life or more.

EXCLUDES: Freight, switch gear, wiring, taxes, 5x16 screen or chutes, fees or permits.
