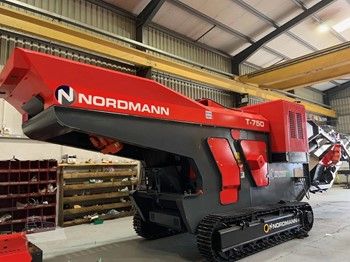

NORDMANN T-750

Description

Crusher & Screens are the Australian distributor for Nordmann from Northern Ireland. The Nordmann range have the T-750 track jaw crusher and the K-750 hook lift option both diesel electric that can be connected to the mains power and a 700x500 jaw box opening. They offer real fuel saving with the electric drive, quite and small enough for the small intercity projects. The T-750 has the option of an attached 7x5 single deck screen offering the ability to produce two finished products such as a roadbase and drainage rock or subbase material.

Specifications:-

Jaw Crusher 700x500 single toggle (45kW drive)

6,000kg.s

Feeder Fixed Hopper & Vibrating Grizzly

Conveyor Hydraulic fold for transport

Chassis Web & flange to suit tracks

Power Unit Diesel electric generator (88kva) & dual power

Full operation & service access

Operation Overall:- 11.3m x 2.3m x 3.2m

Feed height:- 2.85m

Stockpile height:- 3.0m

Transport 9.9m x 2.3m x 2.85m

18,000kg.s (all options fitted)

Ro-Ro

Options Overband magnet Dust suppression

Fines conveyor Deflector plate
