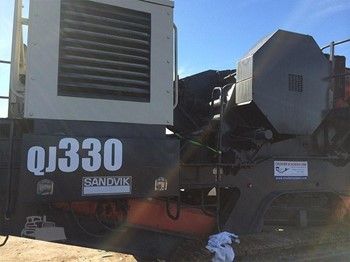

SANDVIK QJ330

Description

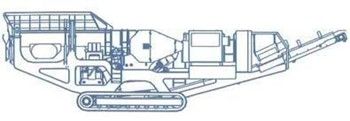

The Qj330 is a Mobile Primary Jaw Crusher constructed for high mobility and high output. The feed hopper has hydraulic foldable sides for easy transport and quick set-up on site. A by-pass chute directs undersize through the grizzly to the discharge conveyor. The feed area of the discharge conveyor is fitted with impact bars to absorb shock loads. Ground clearance below discharge conveyor: approx. 300mm (12") in transport position. Clearance between moving jaw and discharge conveyor belt: approx. 600mm (24")

The chassis is of plate type with the emphasis on easy inspection and access to maintenance points. Platforms around the diesel power pack provide access for inspection and service. A rotating warning beacon and a siren provide visual and auditable warning of movement.

Two 24 V floodlights are fitted for illumination at night. A level monitor system above the crusher stops the feeder if crusher is the blocked.

SPECIFICATIONS

Weight: 42.5 tonne

Dimensions (1 x h x w) Transport Operational: 14500 x 3400 x 2800mm / 14400 x 4140 x 4000mm

Set-up time: 15mins

Chassis: Tracks (500mm) (Dolly opt.)

Crusher: Sandvik Jawmaster J11 1100 x 700mm

Feed Size: 900 x 600 x 1000mm

Hopper Capacity: 7.0m3

Product Size: 60 - 250mm

Throughput: 80 - 250 t/h

Engine (power): CAT C9 (262 kW)

Drive: Diesel-hydraulic

Options

Hardox lined feed hoppers

Central autolube system

Canvas dust covers on product conveyor

Wheeled dolly unit

Arctic package for operation in cold conditions
