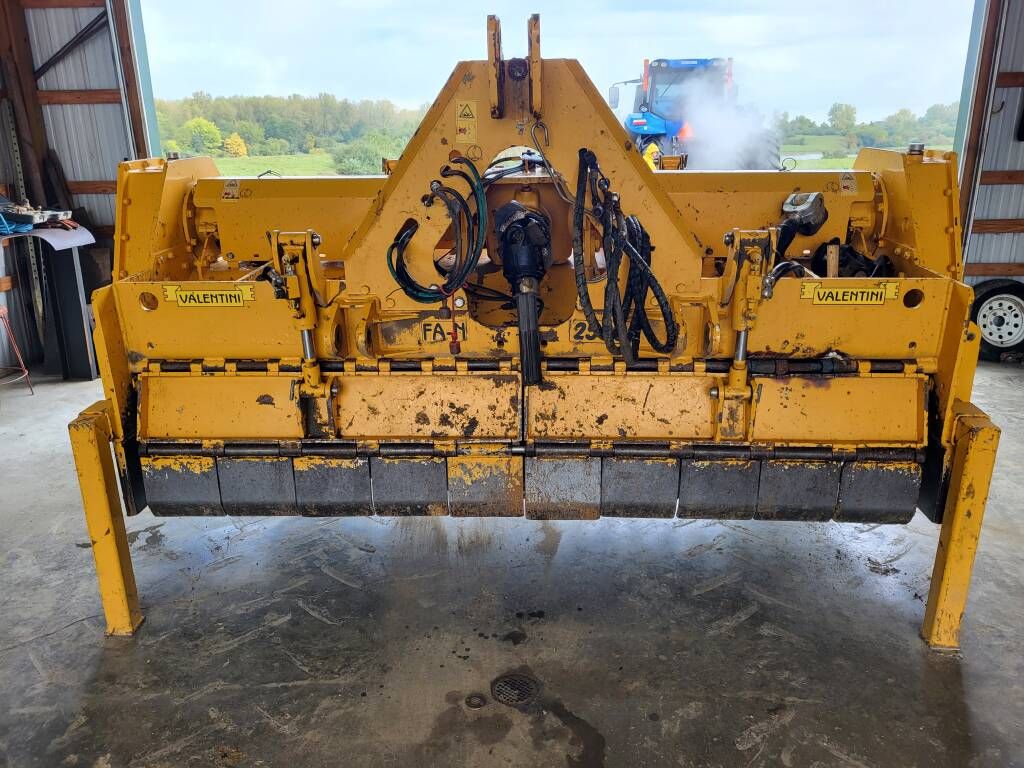

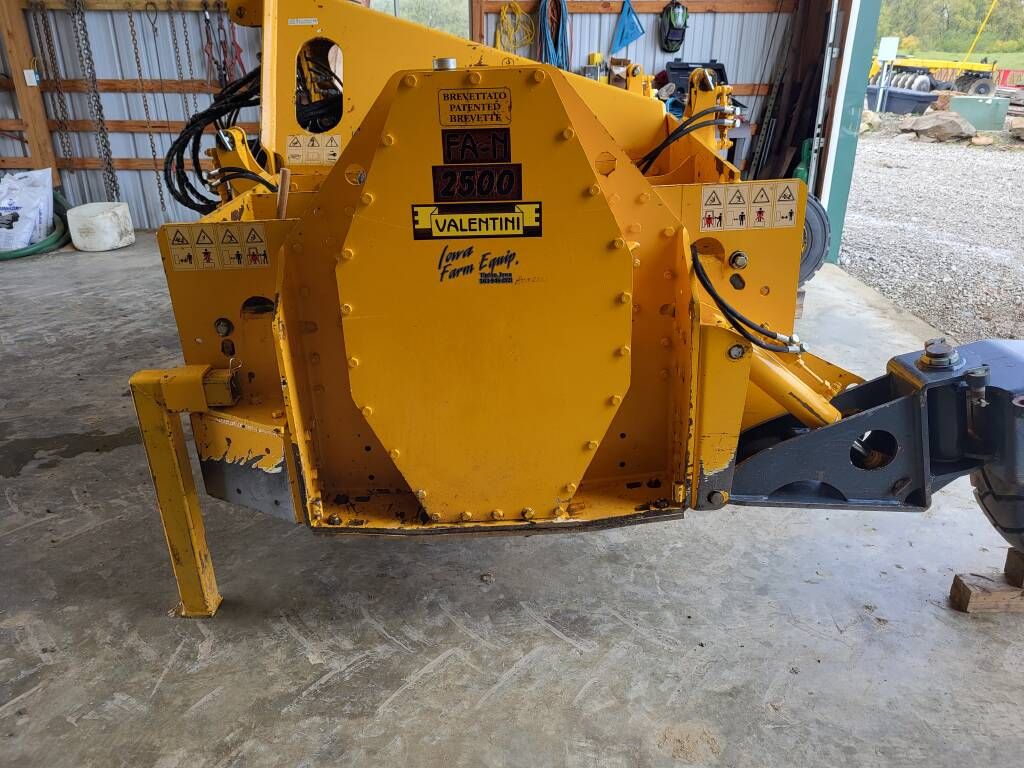

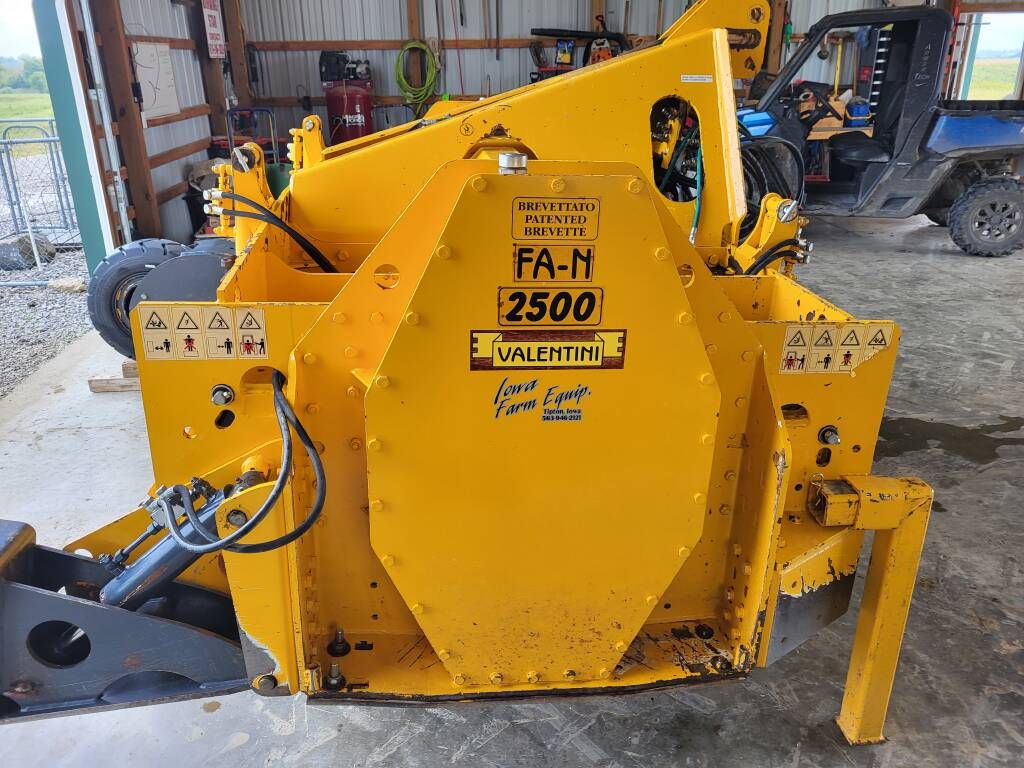

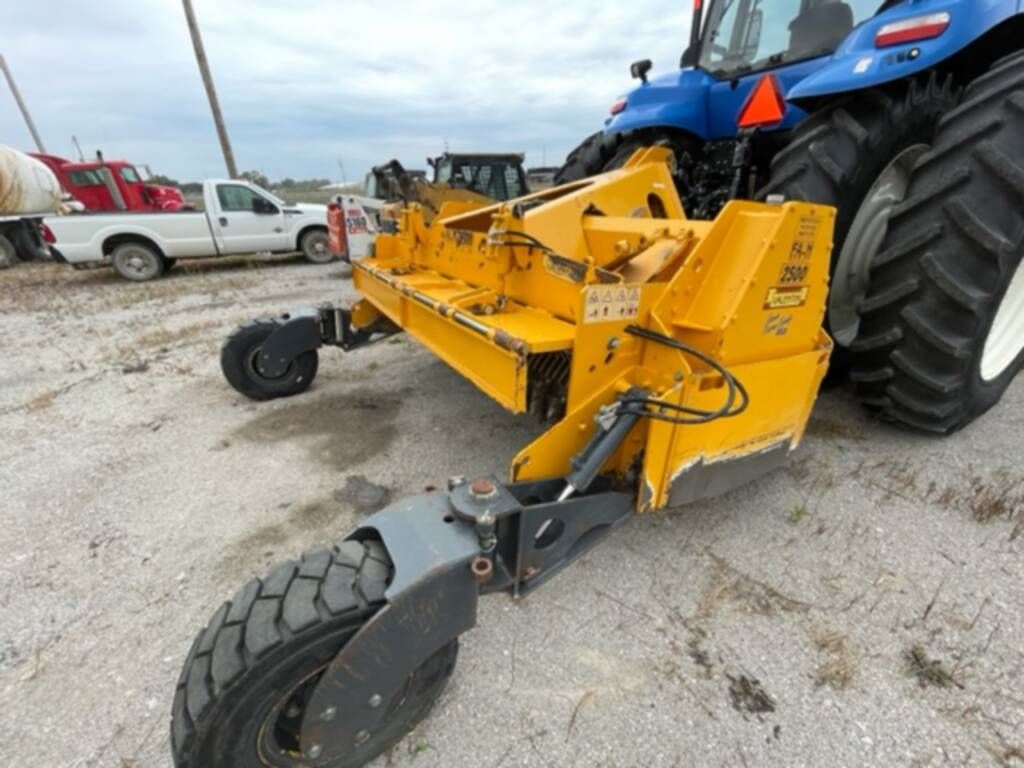

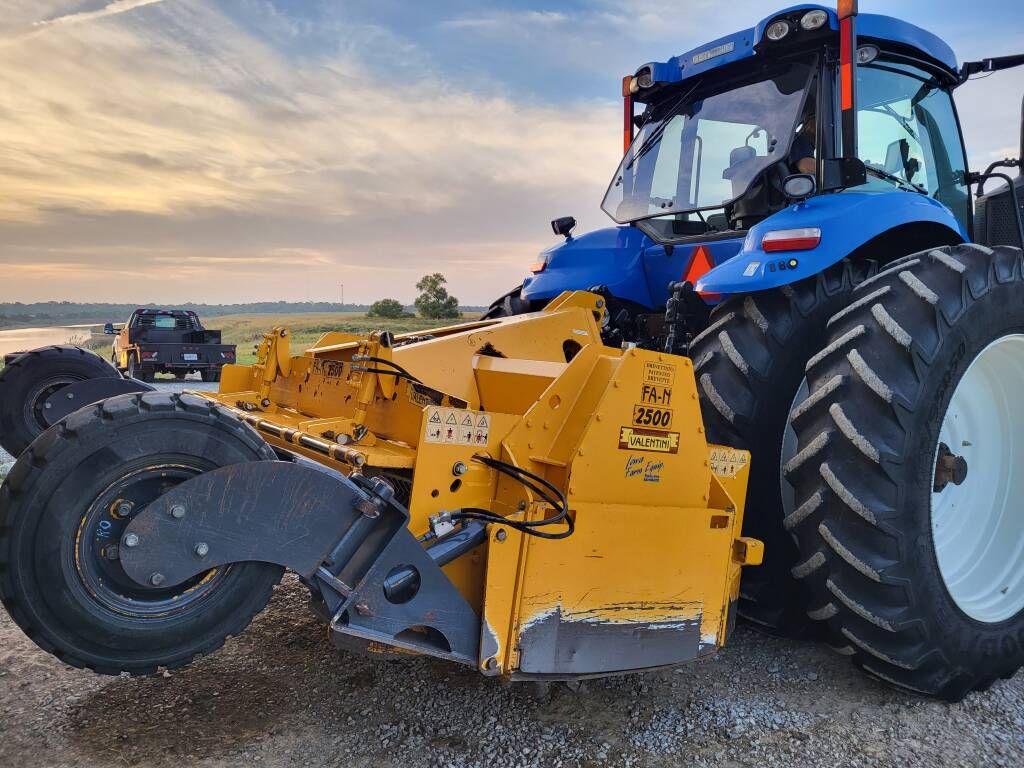

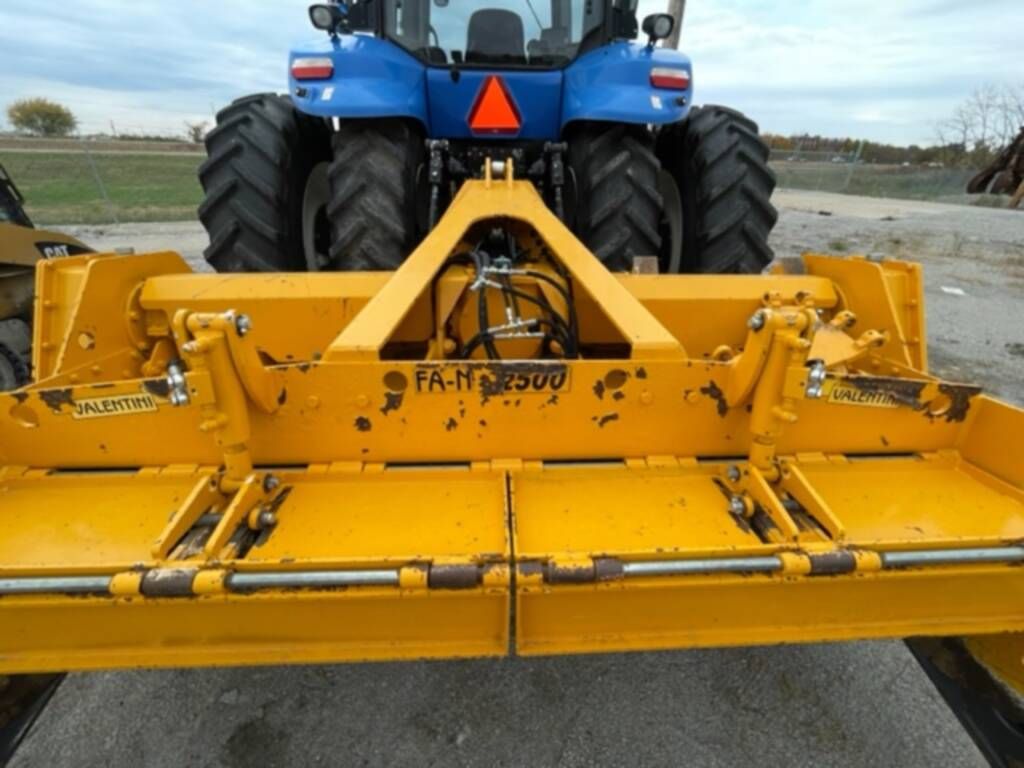

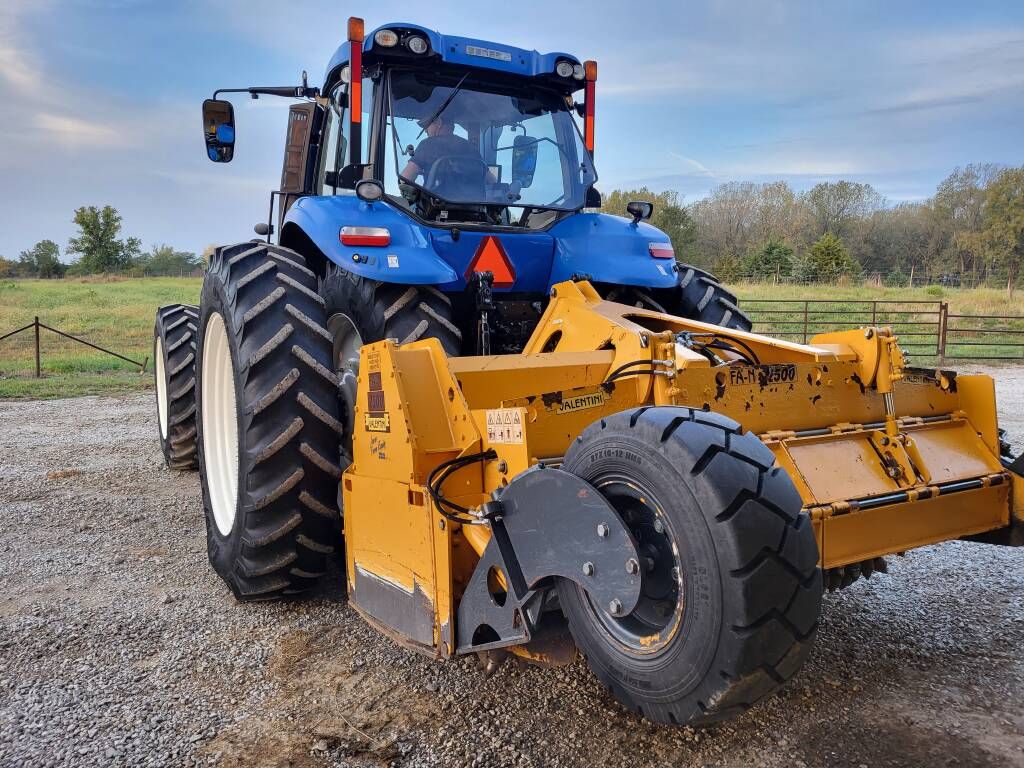

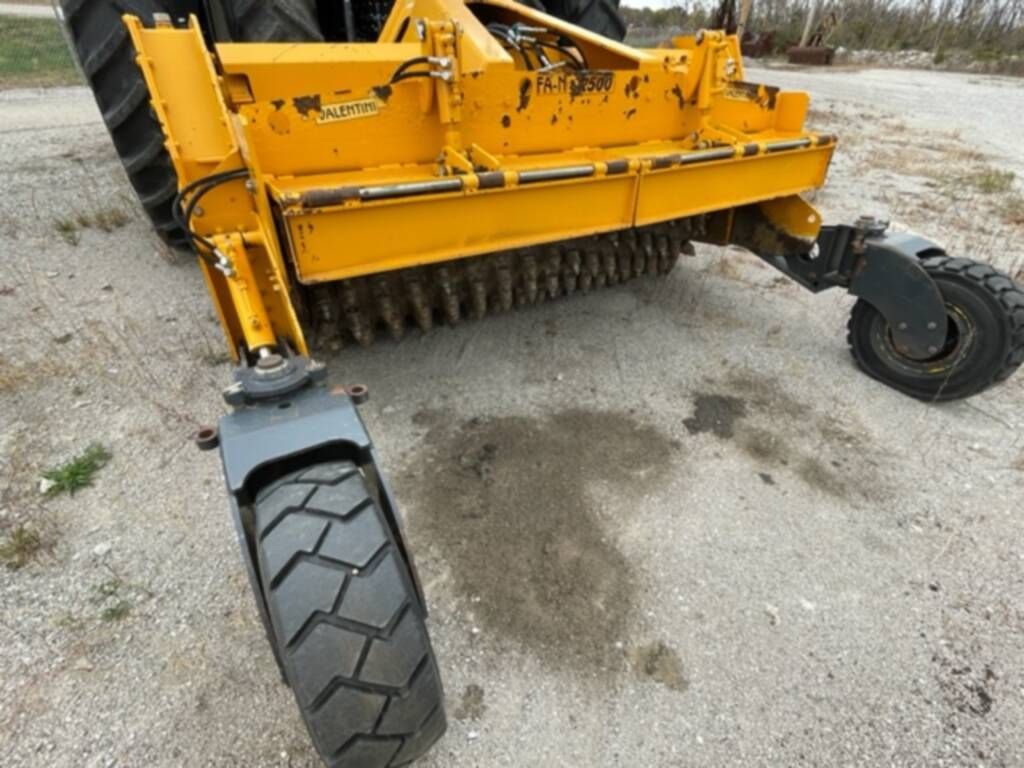

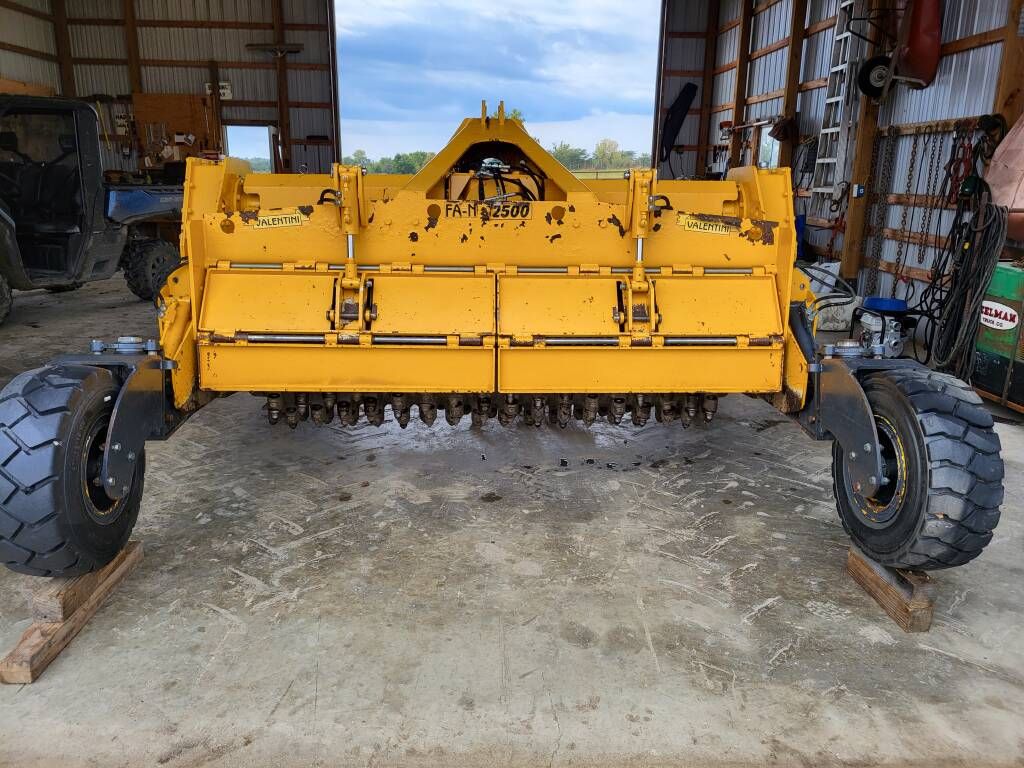

Used 2017 VALENTINI Crushers FAN 2500

Description

Description

Stock #

C2500

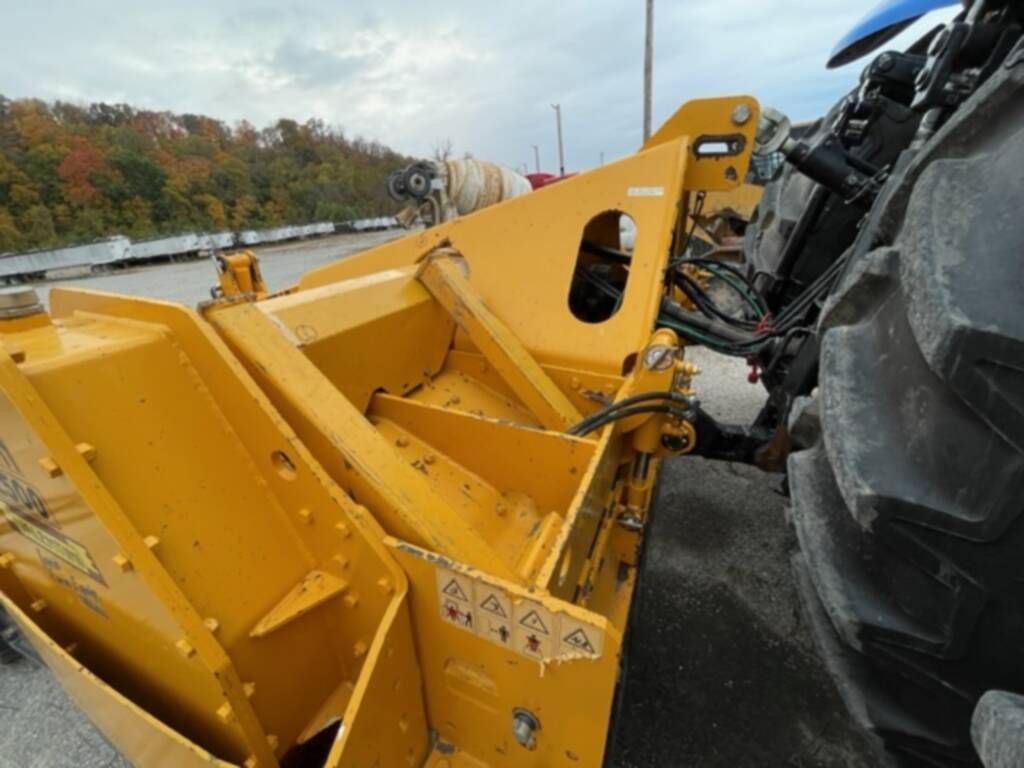

3 point universal hitch (3rd category up to model 2500, 3rd and 4th category from model 2800)

Single speed unit, 1000 rpm

Reinforced rotor, 910 diam. with peaks

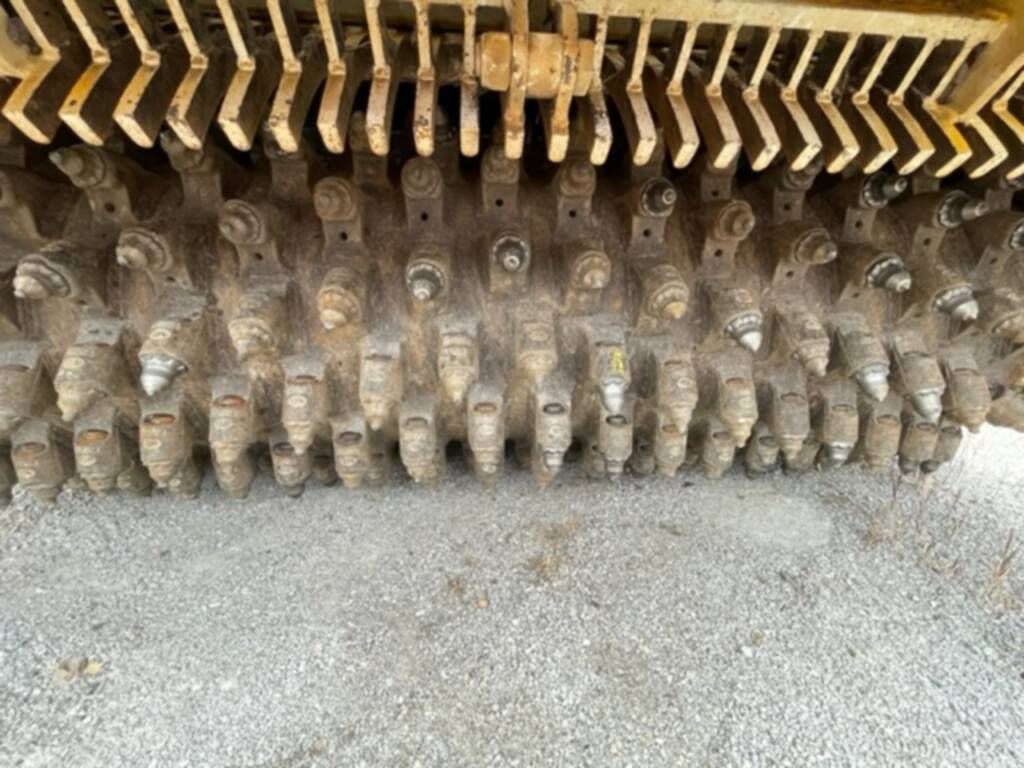

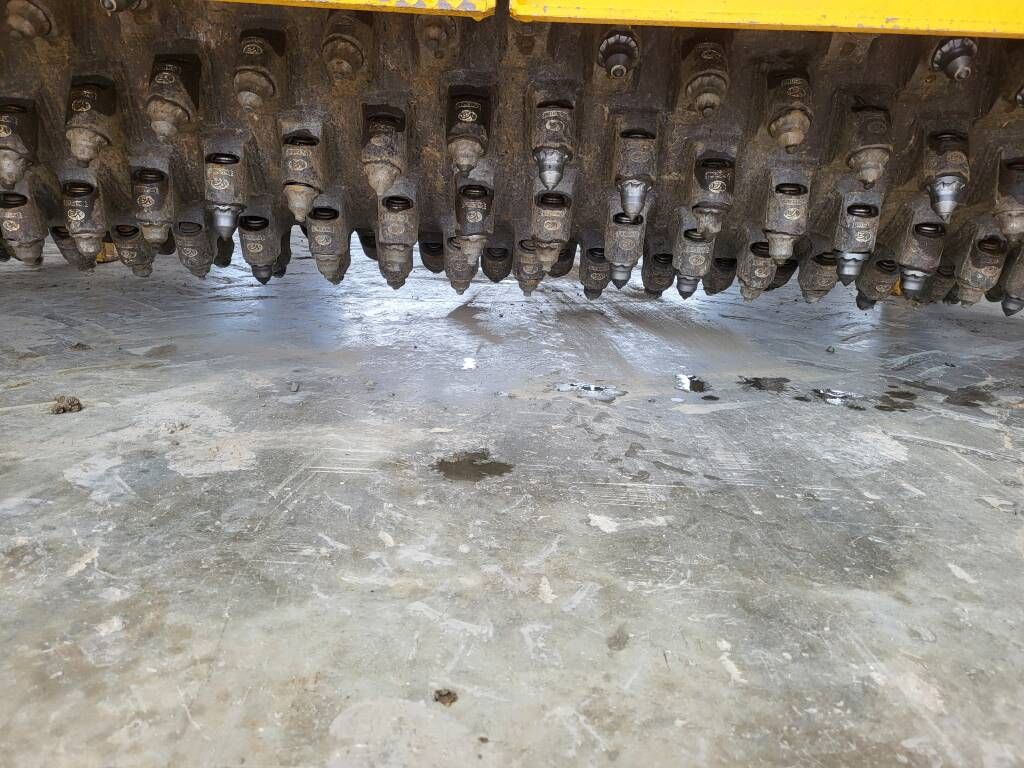

Rotor with 35 Ø peaks in “HIGH-RESISTANCE AND WEAR RESISTANT STEEL”

Protection rings on transmission support

Central cardan with safety bolt (tractor side fork 1 3/4” Z20)

Double lateral transmission with gears in oil bath “by Valentini-4G”

Bearing support with special seals, “Labyrinth Bearing Protection by Valentini”

Rear containment sheets and selection grids for crushed product that can be adjusted with a HYDRAULIC jack

Front conveyor adjustable with HYDRAULIC jack

HYDRAULIC adjustment of sledges for work depth

Casing protection cap on both sides

Protective counter bonnet in “HIGHRESISTANCE AND WEAR RESISTANT STEEL”

“By Valentini” friction phasing system

Safety

CE Safety protections

Front protective rails

Anti-intrusion protections for transport

Parking legs

Crushers 'Diminishing Chamber' is Comprised of the Following:

Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.

Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.

Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.

Containment Door Constructed for Extreme Service Duty & Wear Resistance.

Crusher Body Internal Hardox Lining is Replaceable.

Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
